IP55-IP65 Heavy Duty Analog Phone , Stainless Steel Jail Telephone MF Tone Dialing

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001
Model Number: JR205-FK
Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 3-5 working days
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Detail Information
Material: Stainless Steel Full Keypad: Yes
Protection Type: IP55-IP65 Net Weight: 3 KGS
Dialing: MF (tone) Armored Cord: Yes
Magnetic Hook: Yes Power Supply: Telephone Line/POE/DC Powered
Application: Prison,Factory,other Public Area
High Light:

inmate phone

,

prison visitation phone


Product Description

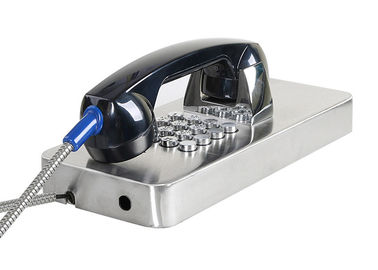

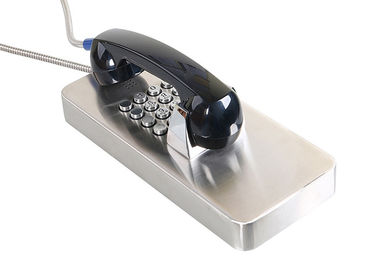

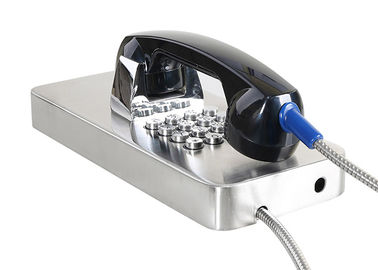

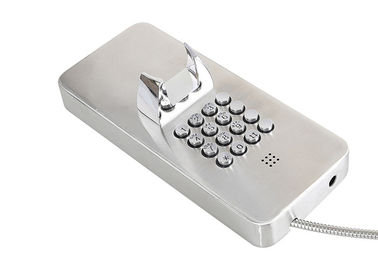

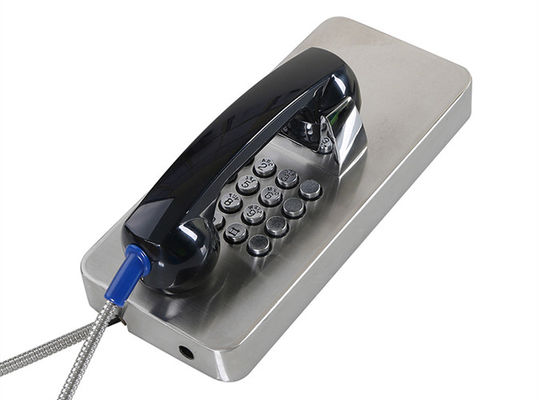

Vandal proof Speed Dial Heavy Duty Stainless Steel Prison Telephone



Housed in stainless steel box and manufactured to a high standard, these telephones offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times.



Extremely easy to install. The cable entrance is on the back of the phone to prevent from artificial damage, while the keypad is weather and vandal resistant.



IP55-IP65 Heavy Duty Analog Phone , Stainless Steel Jail Telephone MF Tone Dialing 0



Stainless Steel Prison Telephone MAIN FEATURES

- Standard Analogue phone, available for SIP version

- Robust housing, constructed of stainless steel

- Vandal resistant handset with armored cord

- Weather proof protection up to IP65



- Full Rugged & metal keypad

- Four additional buttons programmable for speed dial

- Can be programmed remotely by tone phone or locally via keypad

- Non-volatile memory



- Telephone line powered (Analog version )

- External Power supply or PoE powered (SIP version)

- RJ45 port for SIP phone



- Inductive coupler fitted as standard for hard of hearing

- CE, FCC, RoHS, ISO9001 compliant

- On wall mounting, simple installation





Stainless Steel Prison Telephone APPLICATIONS

Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.

IP55-IP65 Heavy Duty Analog Phone , Stainless Steel Jail Telephone MF Tone Dialing 1





TECHNICAL PARAMETERS

Analogue Version
Power Supply From the analogue telephone network
Supply Voltage 24 VDC to 65 VDC
Supply Current 20 mA DC to 100 mA DC
Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.



SIP Version
Power Supply  PoE or 12V DC
Power Consumption  -Idle: 1.5W
 -Active: 1.8W
SIP Protocol  SIP 2.0 (RFC3261)
Support Codec  G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type  Full duplex
Ringer volume  - 90~95dB(A) at a distance of 1 m
 - 110dB(A) at a distance of 1 m (for external horn speaker)



Ambient conditions
Protection type  IP 66 as per EN60529
Operating temperature  -40°C to +70°C
Storage temperature  -45°C to +85°C







PACKAGE

Unit size: 300 *120 *101 (mm)

Carton size: 340 *235 *165 (mm )

Packaging materials: Pearl cotton, Carton

Net weight: 3.5 KG

Gross weight: 4 KG



IP55-IP65 Heavy Duty Analog Phone , Stainless Steel Jail Telephone MF Tone Dialing 2

IP55-IP65 Heavy Duty Analog Phone , Stainless Steel Jail Telephone MF Tone Dialing 3

IP55-IP65 Heavy Duty Analog Phone , Stainless Steel Jail Telephone MF Tone Dialing 4
