| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | J&R |
| Certification: | CE,FCC, RoHS, ISO9001 |
| Model Number: | JR-TH-01 |
| Minimum Order Quantity: | 1 unit |
| Price: | Reconsideration |
| Packaging Details: | Pearl cotton, Wooden box |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 units per month |
| Material: | Fiberglass Reinforced Polyester (GRP) | Noise Attenuation: | -24dB (SPL) |
|---|---|---|---|
| Size: | 780 * 680 * 500 (mm) | Color: | Blue, Yellow, Orange, Or Optional |
| Application: | Both Indoors, Outdoors, Off-Shore & On-Shore | Packaging Materials: | Pearl Cotton, Wooden Box |
| Net Weight: | 25 KG | Installation: | Wall Mounting |
| Vandal Resistant: | Yes | Fire Retardant: | Yes |
| Product Name: | Soundproof Telephone Hood Acoustic Phone Booth Public Call Box | ||
| High Light: | soundproof phone booth,acoustic phone hood |
||

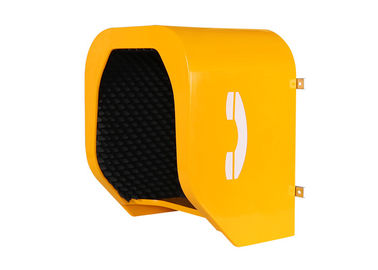

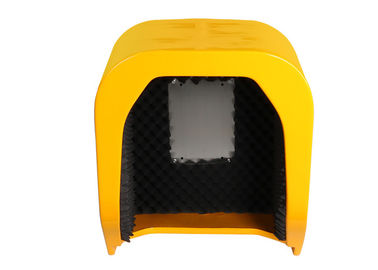

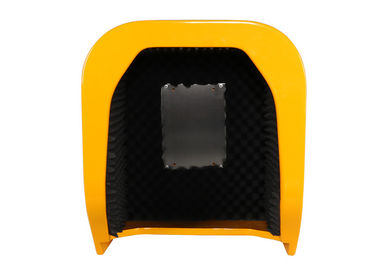

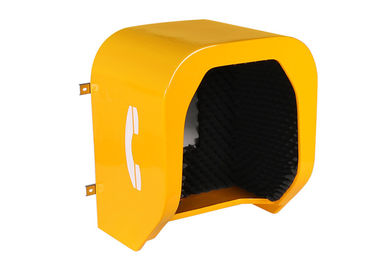

Soundproof Telephone Hood Acoustic Phone Booth Public Call Box In Yellow Color
This Acoustic Telephone Booth made of fiberglass reinforced polyester (GRP), expecialy designed for installation in corrosive industrial and marine areas, Off-Shore & On-Shore, with non hygroscopic sound absorbing filling material, attenuation up to -24dB (SPL).It can be used both indoors, outdoors.

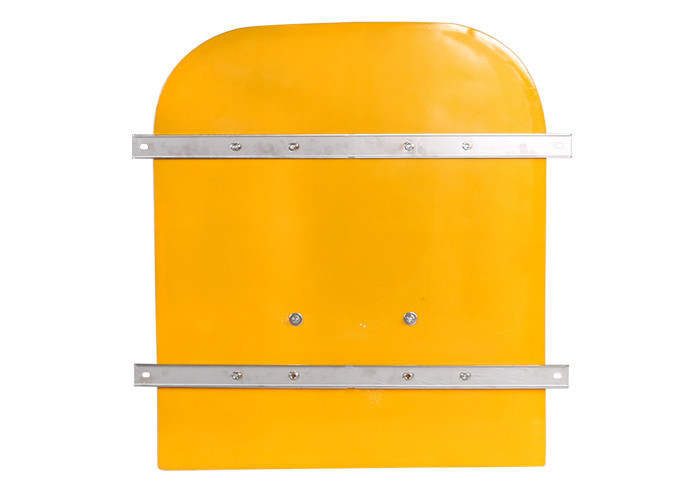

The hood is fixed to the wall via two stainless steel mounting brackets that are secured through the hood's back wall to the inner telephone apparatus plate. This enables a load of up to 60 kgs to be safely mounted on the plate. The plate is pre-drilled to accept many telephones.
Features:
• Polyethylene plastic construction
• Polyethylene material flammability
• Durable, lightweight, chemical tesistant body
• Excellent low temperatures impact properties
• High performance polyurethane acoustic insulation liner, resistant to mildew and rot.
• Completely maintenance free and corrosion resistant, impervious to chemical attack
• Can be used both indoors, outdoors and offshore
• Standard color- Yellow
• Optional colors available upon request
• Special shape for higly noisy areas
• High acoustic insulation characteristics -24dB
• Designed for corrosive and saline atmosphere
• UV resistant and suitable for harsh environment
• Easy fixing system
• Suitable for heavy industrial telephones (up to 60 kg)
• Pass-trough hole on the shelf for cables inlet
• Fire Retardant
|
Dimensions
|
H780mm W680mm D500mm
|
|
Colour
|
Standard color is yellow, Blue and orange color is also available
|
|
Outer Shell
|
General Purpose Resin continuous filament mat - Fire Resistance
|
|
Material
|
fiberglass reinforced polyester
|
|
Acoustic Insulation
|
50mm Tissue faced non hygroscopic Rockwool (RW3) density 60kg/m3
|
|
Insulation Liner
|
White Perforated Polypropylene 3mm thickness
|
|
Apparatus plate
|
304 Grade Stainless Steel, 2mm thickness, powder coated white
|
|
Mounting Brackets
|
304 Grade Stainless Steel, 6mm thickness
|
|
Boxed Dimensions
|
80 x 70 x 55cm
|
|
Boxed Weight
|
pprox. 45kg
|
This vandal resistant telephone is Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.
Packing :
Size: 780 * 680 * 500 (mm)
Packaging materials: pearl cotton, wooden box
Net Weight: 20 KGS
Gross weight: 45 KGS
Delivery:
3-10 working days after payment
