| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | J&R |
| Certification: | CE, FCC, RoHS, ISO9001 |
| Model Number: | JR212-FK |
| Minimum Order Quantity: | 1 piece |
| Price: | negotiable |
| Packaging Details: | pearl cotton, carton |
| Delivery Time: | 3-5 working days after payment |
| Payment Terms: | L/C, T/T,paypal, Western Union |
| Supply Ability: | 3000 sets per month |
| Material: | Cold Rolled Steel Or Stainless Steel | Warranty: | 2 Years |
|---|---|---|---|
| Weather Protection: | IP55-IP65 | Handset: | ABS Material With Armored Cord |
| Size: | 247 *130 *132 (mm) | Weight: | 3.5 KG |
| Version: | Analogue/SIP/GSM | Powered: | Telephone Line Powered Or DC12V Or POE |

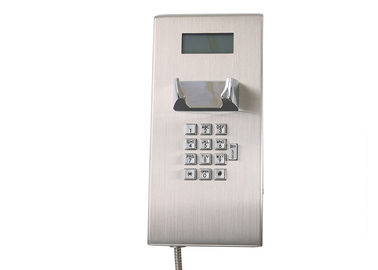

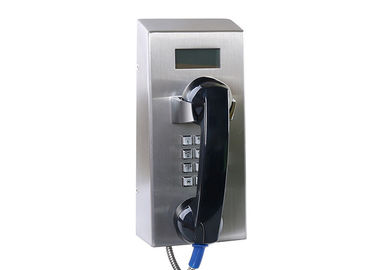

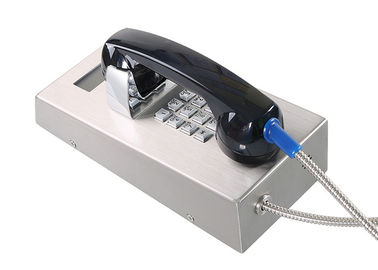

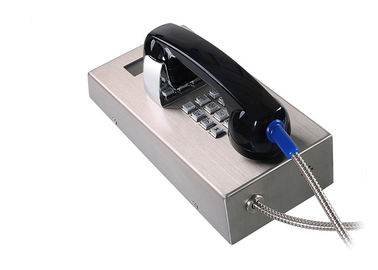

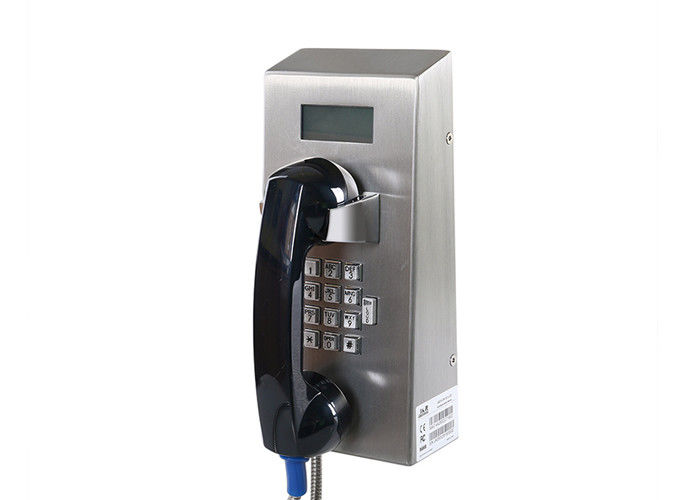

| Product Name: | Jail Emergency Vandal Proof Rugged Teleaid PrisonTelephone With LCD | Main Board: | Audiocodec |
| High Light: | vandal proof telephone,vandal proof intercom |
||
Product Description
This Rugged Prison SIP Telephone is designed to meet the needs of client who experience loss through vandalism.
Housed in stainless steel box and manufactured to a high standard, these telephones offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times.
Extremely easy to install. The cable entrance is on the back of the phone to prevent from artificial damage, while the keypad is weather and vandal resistant.
Features:
- Standard SIP/Analogue/GSMphone
- Robust housing, constructed of stainless steel, with LCD display
- Weather proof protection IP65
- Vandal resistant armored cord handset
- Full Rugged & durable keypad, volume control feature
- Can be programmed remotely by tone phone or locally via keypad
- Non-volatile memory
- Wall mounting, simple installation
- External Power supply or PoE (SIP phone)
- RJ45 port for SIP phone
- Inductive coupler fitted as standard for hard of hearing
- CE, FCC, RoHS, ISO9001 compliant
TECHNICAL SPECIFICATION:
Operating Temperatures: -40°C to + 70°C
Relative humidity high: 93% R.H at 40°C (non condensing)
Casing Material: Heavy Duty aluminium (salt & corrosion resistant)
Illuminated LCD Display: for status notifications and instructions
Flashing Light: ideal for noisy areas where a ring may not be heard, or for easy location inside dark tunnels etc
Excellent Sound Quality: STI approved to 0.9 (Excellent Sound)
Ringing volume: 80 dB(A) in 1m distance
Power Supply: 24V DC input, or Power over Ethernet (PoE).
Connection: RJ45 Ethernet socket through IP67 plug connector.
Quality of Service (QoS): ensuring optimal delivery of voice
Type of Service (ToS): high throughput and reliability (RFC3168)
ISDN gateway compliance: connect any SIP compliant VoIP/ISDN gateway to call to-and receive-calls from ISDN
SIP (Session Initiation Protocol) RFC3261
Inbuilt redundancy: able to make diversion calls to 2nd PBX
TR069 (Technical Report 069): for advanced status monitoring and control
Configuration: web interface or server based configuration file. Static IP address provisioning or DHCP. Mass configuration available.
Keypad Option: available without a keypad (autodial-on-handset-lift),used to initiate a PABX Hotline or wait for reply.
Remote Management: Available with remote management software,to simplify installation and cut maintenance costs.
|
Analogue Version
|
|
|
Power Supply
|
From the analogue telephone network
|
|
Supply Voltage
|
24 VDC to 65 VDC
|
|
Supply Current
|
20 mA DC to 100 mA DC
|
|
Ringer Volume
|
- 80dB(A) at a distance of 1 m
|
|
- 110dB(A) at a distance of 1 m (for external horn speaker)
|
|
|
Dialing Method
|
DTMF mode in accordance with ITU-T recommendation Q.23.
|
|
SIP Version
|
|
|
Power Supply
|
PoE or 12V DC
|
|
Power Consumption
|
-Idle:1.5W
-Active:1.8W |
|
SIP Protocol
|
SIP 2.0 (RFC3261)
|
|
Support Codec
|
G.711 A/U, G.722 8000/16000, G.723, G.729
|
|
Communication Type
|
Full duplex
|
|
Ringer volume
|
- 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker) |
|
3G Version
|
|
|
Power Supply
|
12V DC
|
|
Power Consumption
|
-Idle:0.3W
-Active: 1.5W
|
|
Communication Type
|
Full duplex
|
|
Ringer volume
|
90~95dB(A) at a distance of 1 m
|
|
Program Method
|
Remote programming by SMS
|
|
Frequency
|
A version:
- Dual-Band WCDMA/HSDPA 850/1900MHz - Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz E version: - Dual-Band UMTS/HSDPA 900/2100MHz - Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz J version: - Dual-Band UMTS/HSDPA 850(800)/2100MHz - Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz |
|
Ambient conditions
|
|
|
Protection type
|
IP 66 as per EN60529
|
|
Operating temperature
|
-25°C to +70°C
|
|
Storage temperature
|
-25°C to +85°C
|
Q: Do You Have Any MOQ Limit?
A: Low MOQ, 1pc Is Available
Q: Can I Have A Sample Order ?
A: Yes, We Welcome Sample Order To Test And Check Quality.Mixed Samples Are Acceptable.
Q: What About The Lead Time?
A: Normally Within 2-5 Working Days. We Have Materials In Stock For Most Of Hot Selling Products.And Mass Production Time Needs 2-4 Weeks For Order Quantity More Than 100 Units.
Q: What's the quality standard of your products?
A: CE, FCC, RoHS, ISO9001:2015 certification approved. All materials are in high grade and new. With the strict quality, every phone be thoroughly tested before leaving the factory.
Q: Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q: Can you produce a product in a color of my choosing?
A: Yes, we can manufacture products in different colors, however there may be minimum quantities or surcharges applicable.
Q: Do you provide an installation service?
A: No, we do not install products, but they are very straightforward to install, please kindly contact us if unsure.
Q: When can I receive your quotation?
A: Once learn your detail requirements.
Q: How can I pay you?
A: Many convenient methods for choose: Paypal, T/T, L/C.
