GSM Roadside Emergency Phone Rainproof Wall Mounting Tunnel / Railway Application

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, IP67, ISO9001:2015
Model Number: JR103-FK
Minimum Order Quantity: 1 Piece
Price: negotiable
Packaging Details: J&R standard packing ,pearl cotton, carton
Delivery Time: 3-7 working days after payment
Payment Terms: L/C, T/T, Western Union,PayPal
Supply Ability: 10000pcs per month
Detail Information
Product Name: GSM Roadside Emergency Phone Rainproof Telephone For Tunnel Material: Die-casting Aluminum Alloy
Version: Analogue, SIP/VoIP, GSM/3G Installation: Wall Mounting Or Pillar Mounting
Powered: POE Or DC12V Powered Or Telephone Line Powered Warranty: 2years
Ringing Volume: 75-90db Protection Type: IP65-IP67
SIP Protocol: SIP2.0 Application: Metro, Railway, Highway Side,Tunnel,Roadside Etc
High Light:

sos emergency phone

,

highway emergency phone

,

IP67 Roadside Emergency Phone


Product Description

Product Description

GSM Roadside Emergency Phone Rainproof Telephone for Tunnel

This vandalproof Chemical Plants Telephone is fully contained within a corrosion resistant cast aluminium weatherproof case, providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.



The unique robust handset is manufactured from moulded Bulk Molding Compound and designed specifically to withstand arduous use in all environments, armoured cord to provide additional resistance to vandalism or heavy industrial use.



GSM Roadside Emergency Phone Rainproof Telephone for Tunnel

Standard Analogue phone,or SIP phone,or GSM/3G phone
Vandal resistant handset and armored cord
Weather proof protection to IP67
Full keypad with memory, 0-9 buttons can be programmed as speed dial button.
"LR" button for last number redial
"R" for flash recall
"M" for muting
Wall mounting, simple installation
Built-in amplifier, with external ringer :15W (30W optional), for broadcasting feature
Phone line powered for Analog
External power supply or PoE (SIP)
RJ45 port for SIP phone
CE, FCC, RoHS, ISO9001 compliant

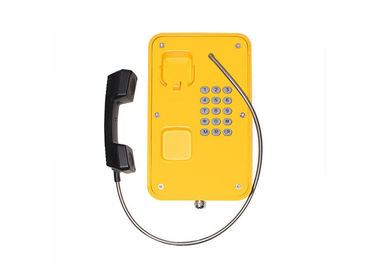

GSM Roadside Emergency Phone Rainproof Wall Mounting Tunnel / Railway Application 0

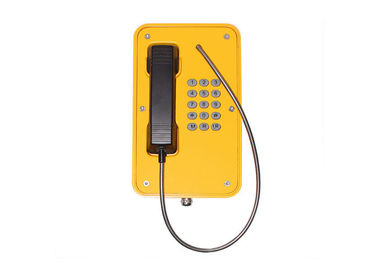

GSM Roadside Emergency Phone Rainproof Wall Mounting Tunnel / Railway Application 1

Main Features

Standard Analogue phone or SIP phone

Vandal resistant handset and cord

Weather proof protection to IP67

Programmable for auto-dial

Wall mounting, simple installation

Inductive coupler fitted as standard for hard of hearing

Phone line powered(Analogue)

External power supply or PoE (SIP-VoIP)l

RJ45 Port for SIP connection

CE,FCC,ROSH compliant



Specification

GSM Roadside Emergency Phone Rainproof Telephone for Tunnel

TECHNICAL SPECIFICATION:
Operating Temperatures: -40°C to + 70°C
Relative humidity high: 93% R.H at 40°C (non condensing)
Casing Material: Heavy Duty aluminium (salt & corrosion resistant)
Illuminated LCD Display: for status notifications and instructions
Flashing Light: ideal for noisy areas where a ring may not be heard, or for easy location inside dark tunnels etc
Excellent Sound Quality: STI approved to 0.9 (Excellent Sound)
Ringing volume: 80 dB(A) in 1m distance
Power Supply: 24V DC input, or Power over Ethernet (PoE).
Connection: RJ45 Ethernet socket through IP67 plug connector.
Quality of Service (QoS): ensuring optimal delivery of voice
Type of Service (ToS): high throughput and reliability (RFC3168)
ISDN gateway compliance: connect any SIP compliant VoIP/ISDN gateway to call to-and receive-calls from ISDN
SIP (Session Initiation Protocol) RFC3261
Inbuilt redundancy: able to make diversion calls to 2nd PBX
TR069 (Technical Report 069): for advanced status monitoring and control
Configuration: web interface or server based configuration file. Static IP address provisioning or DHCP. Mass configuration available.
Keypad Option: available without a keypad (autodial-on-handset-lift),used to initiate a PABX Hotline or wait for reply.
Remote Management: Available with remote management software,to simplify installation and cut maintenance costs.

Analogue Version
Power Supply
From the analogue telephone network
Supply Voltage
24 VDC to 65 VDC
Supply Current
20 mA DC to 100 mA DC
Ringer Volume
- 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method
DTMF mode in accordance with ITU-T recommendation Q.23.
SIP Version
Power Supply
PoE or 12V DC
Power Consumption
-Idle:1.5W
-Active:1.8W
SIP Protocol
SIP 2.0 (RFC3261)
Support Codec
G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type
Full duplex
Ringer volume
- 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
3G Version
Power Supply
12V DC
Power Consumption
-Idle:0.3W
-Active: 1.5W
Communication Type
Full duplex
Ringer volume
90~95dB(A) at a distance of 1 m
Program Method
Remote programming by SMS
Frequency
A version:
- Dual-Band WCDMA/HSDPA 850/1900MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
E version:
- Dual-Band UMTS/HSDPA 900/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
J version:
- Dual-Band UMTS/HSDPA 850(800)/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
Ambient conditions
Protection type
IP 66 as per EN60529
Operating temperature
-25°C to +70°C
Storage temperature
-25°C to +85°C


Application

GSM Roadside Emergency Phone Rainproof Telephone for Tunnel

This weatherproof vandalproof Chemical Plants Telephone is very popular for Tunnels, Mining, Marine, Construction sites, Blast furnace areas, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants, oil&Gas station, and related heavy duty industrial rough environment conditions, etc.

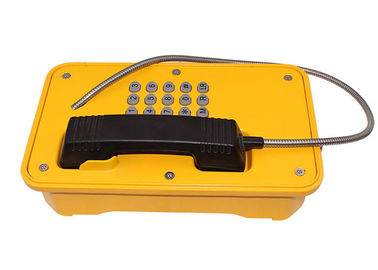

GSM Roadside Emergency Phone Rainproof Wall Mounting Tunnel / Railway Application 2

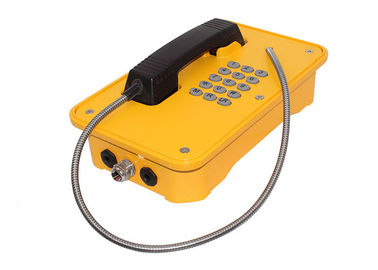

GSM Roadside Emergency Phone Rainproof Wall Mounting Tunnel / Railway Application 3

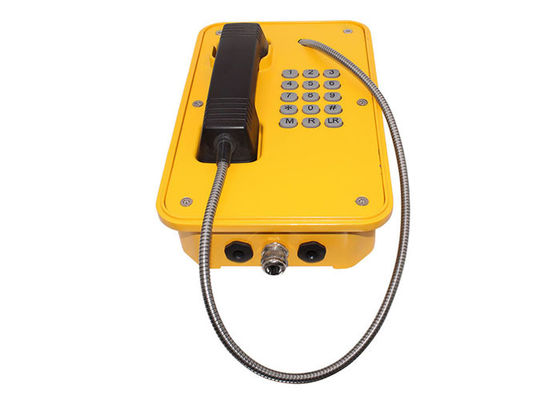

GSM Roadside Emergency Phone Rainproof Wall Mounting Tunnel / Railway Application 4

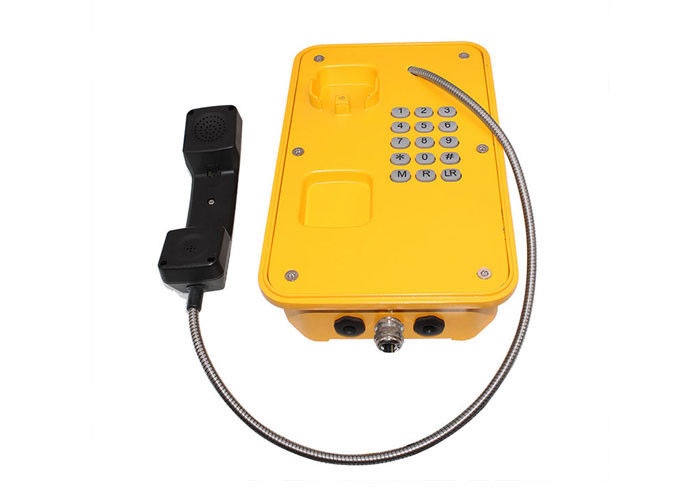

GSM Roadside Emergency Phone Rainproof Wall Mounting Tunnel / Railway Application 5


GSM Roadside Emergency Phone Rainproof Telephone for Tunnel

Certifications

GSM Roadside Emergency Phone Rainproof Wall Mounting Tunnel / Railway Application 6
GSM Roadside Emergency Phone Rainproof Wall Mounting Tunnel / Railway Application 7


FAQ

GSM Roadside Emergency Phone Rainproof Telephone for Tunnel

Q: Do You Have Any MOQ Limit?
A: Low MOQ, 1pc Is Available
Q: Can I Have A Sample Order ?
A: Yes, We Welcome Sample Order To Test And Check Quality.Mixed Samples Are Acceptable.
Q: What About The Lead Time?
A: Normally Within 2-5 Working Days. We Have Materials In Stock For Most Of Hot Selling Products.And Mass Production Time Needs 2-4 Weeks For Order Quantity More Than 100 Units.
Q: What's the quality standard of your products?
A: CE, FCC, RoHS, ISO9001:2015 certification approved. All materials are in high grade and new. With the strict quality, every phone be thoroughly tested before leaving the factory.
Q: Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q: Can you produce a product in a color of my choosing?
A: Yes, we can manufacture products in different colors, however there may be minimum quantities or surcharges applicable.
Q: Do you provide an installation service?
A: No, we do not install products, but they are very straightforward to install, please kindly contact us if unsure.
Q: When can I receive your quotation?
A: Once learn your detail requirements.
Q: How can I pay you?
A: Many convenient methods for choose: Paypal, T/T, L/C.
