| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | J&R |
| Certification: | CE, FCC, RoHS, ISO9001 |
| Model Number: | JR301-SC |
| Minimum Order Quantity: | 1 Piece |
| Price: | negotiable |
| Packaging Details: | J&R standard packing ,pearl cotton, carton |
| Delivery Time: | 3-7 working days after payment |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 10000pcs per month |
| Size: | 206*136*42(mm) | Color: | Customized |
|---|---|---|---|
| Material: | Stainless Steel | Function: | Communication |
| Installation: | Wall Mounting | Ringer Volume: | 90~95dB(A) At A Distance Of 1 M |
| Temperature: | Operating: -30°C To +65°C | Ingress Protection Rating: | IP65 |
| Warranty: | 2 Years | Net Weight: | 2 Kg |
| Gross Weight: | 3 Kg | Feature: | Waterproof |
| High Light: | lift intercom phone,elevator intercom phones |
||

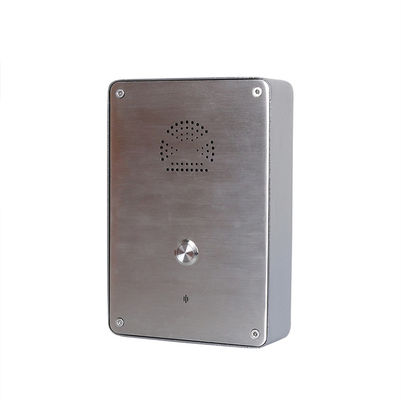

J&R waterproof speed dial public emergency elevator telephone
The Emergency Telephone are based on a stainless steel panel and provide a clear hands-free, loud-speaking operation for any public area.
Manufactured to a high standard, these telephones offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times.
The Emergency Telephones has been designed to meet the needs of clients who experience loss through vandalism. However, the telephone is extremely simple to install and offers a convenience solution to a range of telephone siting problems. Ideal for prisons, court houses, rail platforms, car-parks, police stations, outside buildings, gate entry, etc.
J&R waterproof speed dial public emergency elevator telephone
|
Casing Material
|
Die cast aluminium body, cold rolled steel paceplate epoxy powder coated
|
|
Colors
|
gray, other colors to special order
|
|
Handset MaterialNo handset
|
No handset
|
|
Keypad
|
No Keypad
|
|
Temperature:Operating
|
Operating: -30°C to +65°C Storing: -40°C to +75°C
|
|
Weather Resistance
|
IP66-IP67
|
|
Ringing Tone
|
Shrill warble tone 90 dBA @ 1 metre typical
|
|
Hook switch
|
No hook switch
|
|
Push button
|
Vandal resistant stainless steel button
|
|
M.T.B.F.
|
Calculated to have an M.T.B.F. in excess of 50,000 hours using
|
|
Installation
|
flush-mounting
|
|
Power Input
|
12-24V DC
|
J&R waterproof speed dial public emergency elevator telephone
Standard Analogue phone,available for VoIP/SIP Phone
Can be used on most PBX systems as an extension phone
Weather protection IP65
Tamper resistant fixings,Fast-fit terminal connection
Magnetic reed hook switch to reduce parts subject to wear
Armored modular keypad with metal buttons and bezel that is water, fire and shock resistant
Calling card service compatible
Can be programmed remotely by tone phone or locally via keypad
Non-volatile memory,Built in ringer can be left on or turned off.
Weatherproof and corrosion resistant handset
Stainless steel armoured handset cord
Telephone line powered for Analog phone
DC 5V powered or PoE
Connection: RJ45 Ethernet socket through IP67 plug connector.
Quality of Service (QoS): ensuring optimal delivery of voice
Type of Service (ToS): high throughput and reliability (RFC3168)
SIP (Session Initiation Protocol) RFC3261
Inbuilt redundancy: able to make diversion calls to 2nd PBX
TR069 (Technical Report 069): for advanced status monitoring and control
Configuration: web interface or server based configuration file. Static IP address provisioning or DHCP.
Mass configuration available.
This phone can be easily flush mounted without the need for a separate mounting device.
CE, FCC,ISO9001,ROSH compliant
J&R is China based design and manufacturer of rugged communications equipment. Our telephones and systems work, and last, in environments where regular products wouldn't.
(All of our phone model avaliable for Analogue version,IP/SIP versio,GSM/3G version)
After well study your information,we sincerely hope to enter into partnership with your esteemed compnay.and we hope to serve you and cooperate with you for all of our product range in your market.
We could offer you all of our product range with ODM&OEM solution to meet your demands and requirement well.
and we will support you with the best product solution and costeffective solution to support you with the project requirement and marketing proposal.
J&R waterproof speed dial public emergency elevator telephone
unit size: 206 *136 *42(mm)
Carton size:340 *235 *165( mm )
Packaging materials: pearl cotton, carton
Gross weight: 3KG
Net weight: 2 KG
