IP66 Industrial Weatherproof Telephone , Corded Landline Telephones With LCD Display

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001
Model Number: JR105-FK
Minimum Order Quantity: 1 Piece
Price: negotiable
Packaging Details: J&R standard packing ,pearl cotton, carton
Delivery Time: 3-7 working days after payment
Payment Terms: L/C, T/T, Western Union,PayPal
Supply Ability: 10000pcs per month
Detail Information
Color: Yellow Or Customized Material: Die-casting Aluminum Alloy
Version: Analogue, SIP, GSM, 3G Installation: Wall Mounting
Warranty: 2 Years Weight: 5 KG
Size: 204 *334 *74(mm) Keypad: Yes
Power Input: 12-24V DC Weather Resistance: IP66
Packaging Materials: Pearl Cotton, Carton Feature: LCD Display
High Light:

weatherproof telephone box

,

outdoor weatherproof telephones


Product Description

Product Description

Shenzhen Waterproof Landline Corded Telephone with LCD Display

The industrial telephones are fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.


JR105-FK is designed for voice communication in the hostile envirronment where reliability, efficiency and safety are of prime importance.

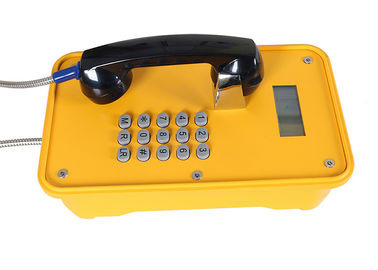

IP66 Industrial Weatherproof Telephone , Corded Landline Telephones With LCD Display 0

Application

Shenzhen Waterproof Landline Corded Telephone with LCD Display

The phone is suitable for use in harsh environment characterized by: indoor & outdoor, Presence of dust & water ingress. Corrosive atmosphere, varying temperature, loud ambient noise, safety ect.

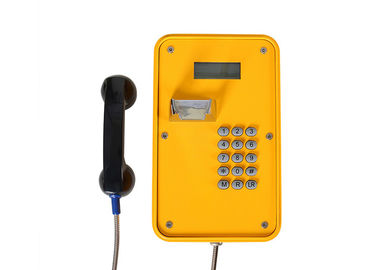

IP66 Industrial Weatherproof Telephone , Corded Landline Telephones With LCD Display 1

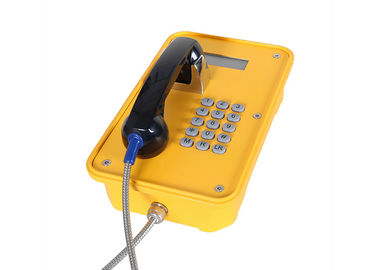

IP66 Industrial Weatherproof Telephone , Corded Landline Telephones With LCD Display 2

Specification

Shenzhen Waterproof Landline Corded Telephone with LCD Display

Casing Material
Die cast aluminium body, cold rolled steel paceplate epoxy powder coated
Colors
yellow, other colors to special order
Handset Material
Cycoloy with stainless steel spiral cord
Keypad
Rubber Keypad
Temperature:Operating
Operating: -30°C to +65°C Storing: -40°C to +75°C
Weather Resistance
IP66-IP67
Ringing Tone
Shrill warble tone 80 dBA @ 1 metre typical
Hook switch
Electronic/ magnetic with no visible moving parts
Push button
Vandal resistant stainless steel button
M.T.B.F.
Calculated to have an M.T.B.F. in excess of 60,000 hours using
Weight
Up to 5 kg depending on option
Package Materials Pearl cotton, carton



Feature

Shenzhen Waterproof Landline Corded Telephone with LCD Display

Standard Analogue phone/ SIP phone

Vandal resistant handset and cord

Weather proof protection to IP66

Full keypad with memory, 0-9 buttons can be programmed as speed dial button

"LR" button for last number redial

"R" for flash recall

"M" for muting

Wall mounting, Easy for installation

Inductive coupler fitted as standard for hard of hearing, with LCD display

Phone line power supply or PoE (SIP-VoIP)

RJ45 port for SIP phone

CE, FCC, ROSH compliant

Package

Shenzhen Waterproof Landline Corded Telephone with LCD Display

unit size 204*334*74(mm)
Carton size 200*300*440(mm)
Package Materials pearl cotton, carton
Gross Weight 6KG
Net Weight 5KG

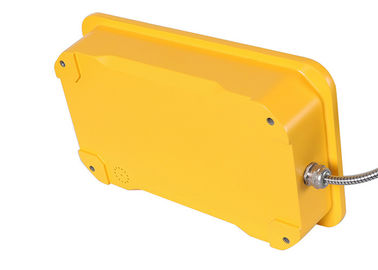

IP66 Industrial Weatherproof Telephone , Corded Landline Telephones With LCD Display 3

Our Company

J&R is China based design and manufacturer of rugged communications equipment. Our telephones and systems work, and last, in environments where regular products wouldn't.
(All of our phone model avaliable for Analogue version,IP/SIP versio,GSM/3G version)
After well study your information,we sincerely hope to enter into partnership with your esteemed compnay.and we hope to serve you and cooperate with you for all of our product range in your market.
We could offer you all of our product range with ODM&OEM solution to meet your demands and requirement well.
and we will support you with the best product solution and costeffective solution to support you with the project requirement and marketing proposal.

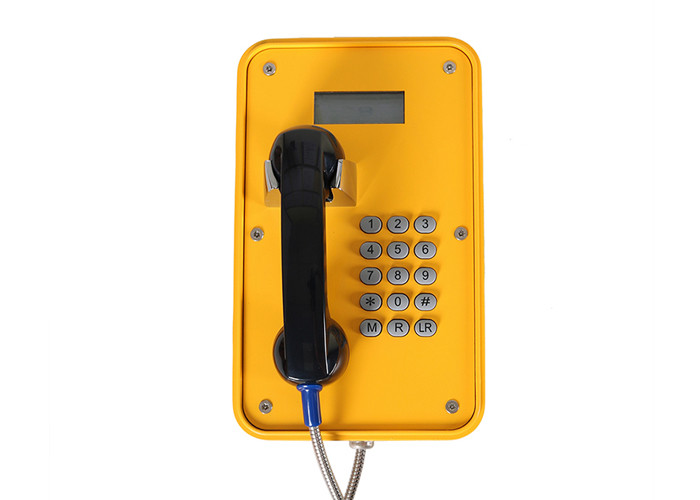

IP66 Industrial Weatherproof Telephone , Corded Landline Telephones With LCD Display 4

IP66 Industrial Weatherproof Telephone , Corded Landline Telephones With LCD Display 5
