| Brand Name: | J&R |
| Model Number: | JR201-FK |
| MOQ: | 1 piece |
| Price: | negotiable |
| Payment Terms: | L/C, T/T,paypal, Western Union |
| Supply Ability: | 3000 sets per month |

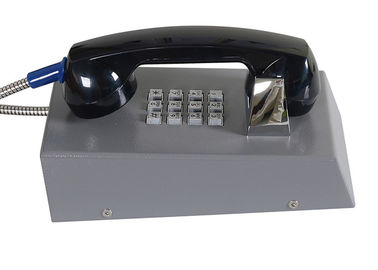

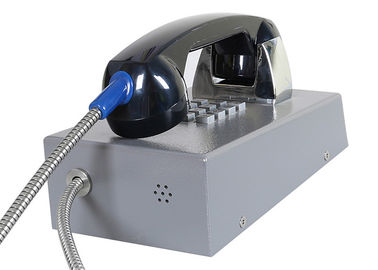

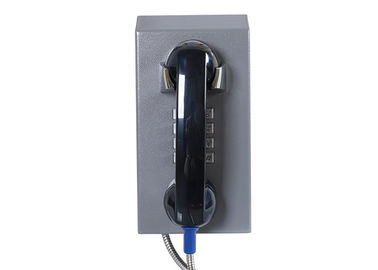

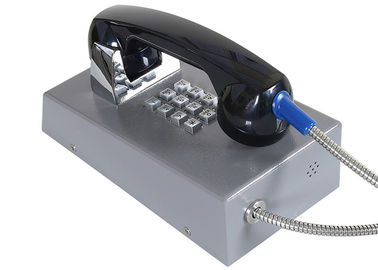

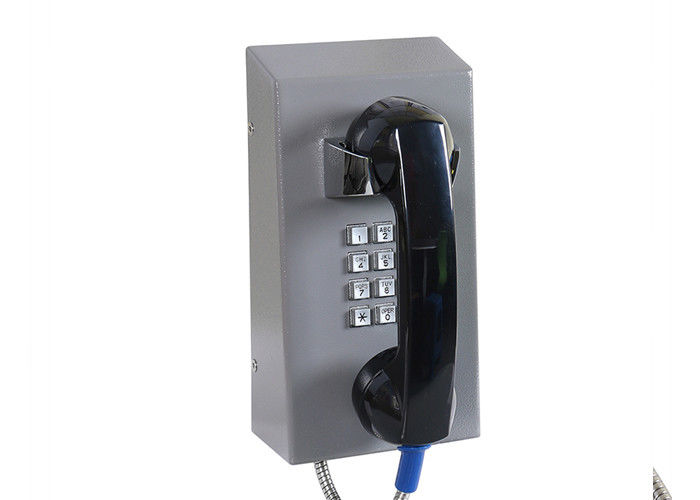

This vandal resistant Telephone is housed in stainless steel box and manufactured to a high standard, it is offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times, resulting in a highly reliable product with a long MTBF
Extremely easy to install. The cable entrance is on the back of the phone to prevent from artificial damage, while the keypad is weather and vandal resistant
Features:
- Standard Analogue Phone, SIP Phone, Avaliable for GSM/3G Phone
- Telephone line powered for Analog Phone,POE powered for IP version
- 24V DC input or Power over Ethernet (PoE)
- RJ45 Ethernet socket through IP67 plug connector
- Robust housing, constructed of stainless steel
- Vandal resistant handset and armored cord
- Full Rugged & durable keypad
- Can be programmed remotely by tone phone or locally via keypad
- On wall mounting, simple installation
- Weather proof protection up to IP65
- Impact, shock, fall and vibration proof,able to perform in difficult environments
- Inductive coupler fitted as standard for hard of hearing
- CE, FCC, RoHS, ISO9001 compliant

TECHNICAL SPECIFICATION:
Operating Temperatures: -40°C to + 70°C
Relative humidity high: 93% R.H at 40°C (non condensing)
Casing Material: Heavy Duty aluminium (salt & corrosion resistant)
Illuminated LCD Display: for status notifications and instructions
Flashing Light: ideal for noisy areas where a ring may not be heard, or for easy location inside dark tunnels etc
Excellent Sound Quality: STI approved to 0.9 (Excellent Sound)
Ringing volume: 80 dB(A) in 1m distance
Power Supply: 24V DC input, or Power over Ethernet (PoE).
Connection: RJ45 Ethernet socket through IP67 plug connector.
Quality of Service (QoS): ensuring optimal delivery of voice
Type of Service (ToS): high throughput and reliability (RFC3168)
ISDN gateway compliance: connect any SIP compliant VoIP/ISDN gateway to call to-and receive-calls from ISDN
SIP (Session Initiation Protocol) RFC3261
Inbuilt redundancy: able to make diversion calls to 2nd PBX
TR069 (Technical Report 069): for advanced status monitoring and control
Configuration: web interface or server based configuration file. Static IP address provisioning or DHCP. Mass configuration available.
Keypad Option: available without a keypad (autodial-on-handset-lift),used to initiate a PABX Hotline or wait for reply.
Remote Management: Available with remote management software,to simplify installation and cut maintenance costs.
|
			 Analogue Version
			 |
		|
|
			 Power Supply
			 |

			 From the analogue telephone network
			 |

|
			 Supply Voltage
			 |

			 24 VDC to 65 VDC
			 |

|
			 Supply Current
			 |

			 20 mA DC to 100 mA DC
			 |

|
			 Ringer Volume
			 |

			 - 80dB(A) at a distance of 1 m
			 |

|
			 - 110dB(A) at a distance of 1 m (for external horn speaker)
			 |
		|
|
			 Dialing Method
			 |

			 DTMF mode in accordance with ITU-T recommendation Q.23.
			 |

|
			 SIP Version
			 |
		|
|
			 Power Supply
			 |

			 PoE or 12V DC
			 |

|
			 Power Consumption
			 |

			 -Idle:1.5W
			-Active:1.8W  |

|
			 SIP Protocol
			 |

			 SIP 2.0 (RFC3261)
			 |

|
			 Support Codec
			 |

			 G.711 A/U, G.722 8000/16000, G.723, G.729
			 |

|
			 Communication Type
			 |

			 Full duplex
			 |

|
			 Ringer volume
			 |

			 - 90~95dB(A) at a distance of 1 m
			- 110dB(A) at a distance of 1 m (for external horn speaker)  |

|
			 3G Version
			 |
		|
|
			 Power Supply
			 |

			 12V DC
			 |

|
			 Power Consumption
			 |

			 -Idle:0.3W

			-Active: 1.5W
			 |

|
			 Communication Type
			 |

			 Full duplex
			 |

|
			 Ringer volume
			 |

			 90~95dB(A) at a distance of 1 m
			 |

|
			 Program Method
			 |

			 Remote programming by SMS
			 |

|
			 Frequency
			 |

			 A version:
			- Dual-Band WCDMA/HSDPA 850/1900MHz - Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz E version: - Dual-Band UMTS/HSDPA 900/2100MHz - Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz J version: - Dual-Band UMTS/HSDPA 850(800)/2100MHz - Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz  |

|
			 Ambient conditions
			 |
		|
|
			 Protection type
			 |

			 IP 66 as per EN60529
			 |

|
			 Operating temperature
			 |

			 -25°C to +70°C
			 |

|
			 Storage temperature
			 |

			 -25°C to +85°C
			 |

Q: Do You Have Any MOQ Limit?
A: Low MOQ, 1pc Is Available
Q: Can I Have A Sample Order ?
A: Yes, We Welcome Sample Order To Test And Check Quality.Mixed Samples Are Acceptable.
Q: What About The Lead Time?
A: Normally Within 2-5 Working Days. We Have Materials In Stock For Most Of Hot Selling Products.And Mass Production Time Needs 2-4 Weeks For Order Quantity More Than 100 Units.
Q: What's the quality standard of your products?
A: CE, FCC, RoHS, ISO9001:2015 certification approved. All materials are in high grade and new. With the strict quality, every phone be thoroughly tested before leaving the factory.
Q: Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q: Can you produce a product in a color of my choosing?
A: Yes, we can manufacture products in different colors, however there may be minimum quantities or surcharges applicable.
Q: Do you provide an installation service?
A: No, we do not install products, but they are very straightforward to install, please kindly contact us if unsure.
Q: When can I receive your quotation?
A: Once learn your detail requirements.
Q: How can I pay you?
A: Many convenient methods for choose: Paypal, T/T, L/C.
