Blue Color Outdoor Weatherproof Telephones 80 - 95db Ringing Volume For Railway

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, IP67, ISO9001:2015
Model Number: JR101-CB
Minimum Order Quantity: 1 piece
Price: negotiable
Packaging Details: J&R standard packing ,pearl cotton, carton
Delivery Time: 3-7 working days after payment
Payment Terms: T/T, Western Union,paypal,Cash
Supply Ability: 10000 pieces per month
Detail Information
Product Name: SIP Hotline Emergency Industrial Weatherproof Telephone For Tunnel Version: Analogue/IP/GSM
Color: Yellow/red/blue Power Supply: POE/DC12V/Telephone Line Powered
Mounting: Wall Mounting Or Pillar Mounting Ringing Volume: 80-95db
Material: Die-casting Aluminum Handset: Stainless Steel Cord
Protection Type: IP65 Application: Metro, Railway, Highway Side,Tunnel,Roadside Etc
High Light:

weatherproof telephone box

,

outdoor weatherproof telephones


Product Description

Product Description

SIP Hotline Emergency Industrial Weatherproof Telephone for Tunnel

As a weatherproof Automatic Dialers, it is fully contained within a corrosion resistant die casting aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.

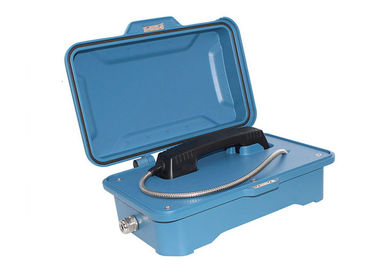

Blue Color Outdoor Weatherproof Telephones 80 - 95db Ringing Volume For Railway 0

Main Features

SIP Hotline Emergency Industrial Weatherproof Telephone for Tunnel

Features:
Standard analogue/IP/GSMphone
-Robust construction, Vandal resistant
-All weather protection IP65-67
-Tamper resistant fixings
-Simple installation
-Fast-fit terminal connection
-Various mounting option,wall mounting or pillar mounting
-Hot line without keypad ,With door cover and handset
-Can be programmed remotely Non-volatile memory
-Telephone line powered for analogue version

- POE or DC12V powered for IP verison
-Waterprof and Vandal resistant handset
-Stainless steel armored handset cord
-CE, FCC compliant



Specification

SIP Railway Autodial Hotline Industrial Weatherproof Telephone

TECHNICAL SPECIFICATION:
Operating Temperatures: -40°C to + 70°C
Relative humidity high: 93% R.H at 40°C (non condensing)
Casing Material: Heavy Duty aluminium (salt & corrosion resistant)
Flashing Light: ideal for noisy areas where a ring may not be heard, or for easy location inside dark tunnels etc
Excellent Sound Quality: STI approved to 0.9 (Excellent Sound)
Ringing volume: 80 dB(A) in 1m distance
Power Supply: 24V DC input, or Power over Ethernet (PoE) for IP verison
Connection: RJ45 Ethernet socket through IP67 plug connector.
Quality of Service (QoS): ensuring optimal delivery of voice
Type of Service (ToS): high throughput and reliability (RFC3168)
ISDN gateway compliance: connect any SIP compliant VoIP/ISDN gateway to call to-and receive-calls from ISDN
SIP (Session Initiation Protocol) RFC3261
Inbuilt redundancy: able to make diversion calls to 2nd PBX
TR069 (Technical Report 069): for advanced status monitoring and control
Configuration: web interface or server based configuration file. Static IP address provisioning or DHCP. Mass configuration available.
Keypad Option: available without a keypad (autodial-on-handset-lift),used to initiate a PABX Hotline or wait for reply.
Remote Management: Available with remote management software,to simplify installation and cut maintenance costs.

Analogue Version

Power Supply

From the analogue telephone network

Supply Voltage

24 VDC to 65 VDC

Supply Current

20 mA DC to 100 mA DC

Ringer Volume

- 80dB(A) at a distance of 1 m

- 110dB(A) at a distance of 1 m (for external horn speaker)

Dialing Method

DTMF mode in accordance with ITU-T recommendation Q.23.

SIP Version

Power Supply

PoE or 12V DC

Power Consumption

-Idle:1.5W
-Active:1.8W

SIP Protocol

SIP 2.0 (RFC3261)

Support Codec

G.711 A/U, G.722 8000/16000, G.723, G.729

Communication Type

Full duplex

Ringer volume

- 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)

3G Version

Power Supply

12V DC

Power Consumption

-Idle:0.3W

-Active: 1.5W

Communication Type

Full duplex

Ringer volume

90~95dB(A) at a distance of 1 m

Program Method

Remote programming by SMS

Frequency

A version:
- Dual-Band WCDMA/HSDPA 850/1900MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
E version:
- Dual-Band UMTS/HSDPA 900/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
J version:
- Dual-Band UMTS/HSDPA 850(800)/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz

Ambient conditions

Protection type

IP 66 as per EN60529

Operating temperature

-25°C to +70°C

Storage temperature

-25°C to +85°C

Application

SIP Hotline Emergency Industrial Weatherproof Telephone for Tunnel

This waterproof emergency telephone ia widely used for Metro, Railway, Highway side, Marine, Mining, Tunnels, Steel Plant,Chemical plant,Power plant and related industrial application, etc

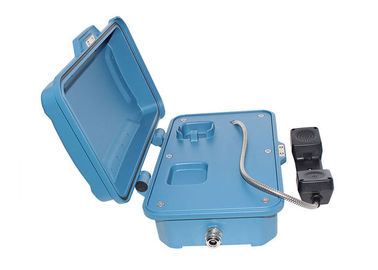

Blue Color Outdoor Weatherproof Telephones 80 - 95db Ringing Volume For Railway 1

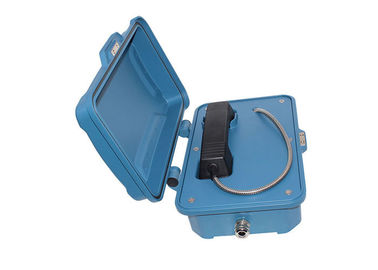

Blue Color Outdoor Weatherproof Telephones 80 - 95db Ringing Volume For Railway 2

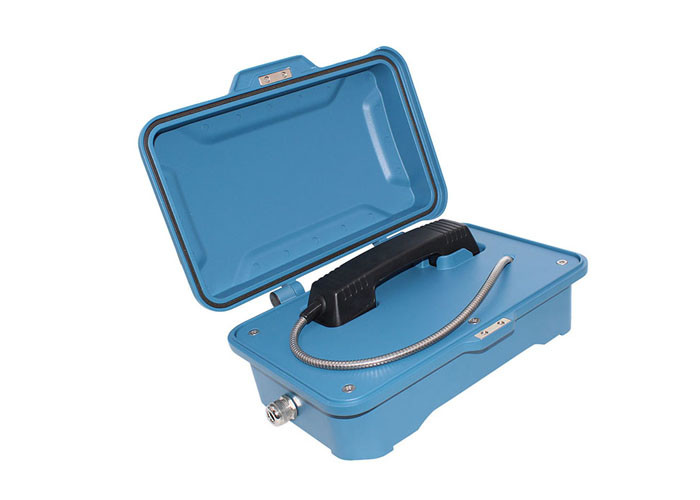

Blue Color Outdoor Weatherproof Telephones 80 - 95db Ringing Volume For Railway 3

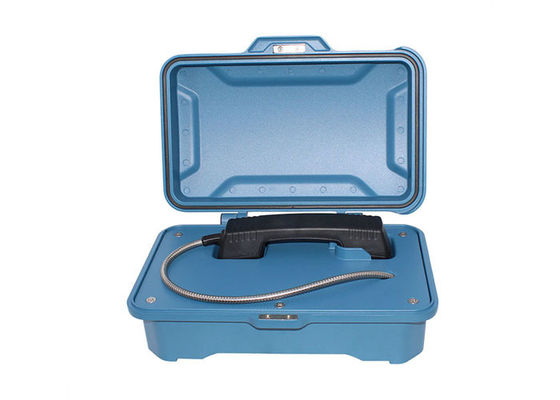

Blue Color Outdoor Weatherproof Telephones 80 - 95db Ringing Volume For Railway 4

Certifications

SIP Hotline Emergency Industrial Weatherproof Telephone for Tunnel

Blue Color Outdoor Weatherproof Telephones 80 - 95db Ringing Volume For Railway 5



Our Company

SIP Hotline Emergency Industrial Weatherproof Telephone for Tunnel

J&R is one of the most professional manufacturers of emergency telephones, industrial telephones, Explosion-proof Telephones, and public telephones in Asia. The successful cooperation with thousands of customers all over the world and the supports to hundreds of projects have made us a reliable and popular supplier of industrial phones and phone accessories. Our main products include weatherproof phones, Explosion proof telephone, prison phones, emergency phones, elevator phones , acoustic phone booths and telephone kits as well.

Blue Color Outdoor Weatherproof Telephones 80 - 95db Ringing Volume For Railway 6

As a reliable supplier of different kinds of industrial telephones, we have been sharing the equipments and systems with different customers and users all over the world. The professional service and excellent quality made us enjoy the reputation over more than 80 countries, including USA, China, Thailand, Malaysia, Turkey, Israel, Greece, Spain, France, UK, Denmark, South Africa, Australia, Mexico, Colombia, Chile etc.

Dedication and profession have been our pursuing goal during any procedures of our production, not only in developing and quality controlling, but also in marketing and after sales. We serve any single potential customer with special individual solutions and systems.

Choose J&R technology, choose reliable talks.



Blue Color Outdoor Weatherproof Telephones 80 - 95db Ringing Volume For Railway 7





FAQ

SIP Hotline Emergency Industrial Weatherproof Telephone for Tunnel

Q: Do You Have Any MOQ Limit?

A: Low MOQ, sample order is also welcome

Q: What About The Lead Time?
A: Normally Within 3-5 Working Days. We Have Materials In Stock For Most Of Hot Selling Products.And Mass Production Time Needs 2-4 Weeks For Order Quantity More Than 100 Units.

Q: What's the quality standard of your products?
A: CE, FCC, RoHS, IP67 ISO9001:2015 certification approved. All materials are in high grade and new. With the strict quality, every phone be thoroughly tested before leaving the factory.

Q: Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q: Can you produce a product in a color of my choosing?
A: Yes, we can manufacture products in different colors, however there may be minimum quantities or surcharges applicable.

Q: Do you provide an installation service?
A: No, we do not install products, but they are very straightforward to install, please kindly contact us if unsure.

Q: When can I receive your quotation?
A: Once learn your detail requirements.

Q: How can I pay you?
A: Many convenient methods for choose: Paypal, T/T, L/C.
