| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | J&R |
| Certification: | CE, FCC, RoHS, ISO9001 |
| Model Number: | JR-TP-05 |
| Minimum Order Quantity: | 1 set |
| Price: | Reconsideration |
| Packaging Details: | pearl cotton, carton, wooden box |
| Delivery Time: | 2-5 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 3000 sets per month |
| Material: | Cold Rolled Steel | Color: | Blue, Yellow, Or Optional |
|---|---|---|---|
| Warranty: | 2 Years | Weather Protection: | IP65 |
| Customized: | Yes | Telephone: | With Or Without |
| Vandal Resistant: | Yes | Unit Size: | 1500 X 300x 300 Mm |
| Weight: | 25 KG | ||
| High Light: | sos emergency phone,highway emergency phone |
||

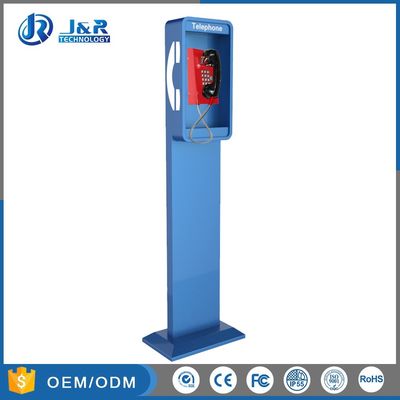

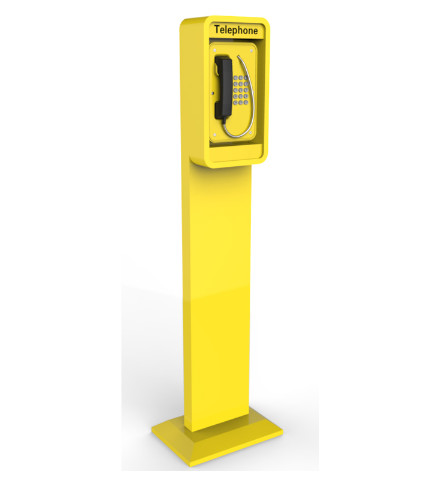

Vandal Resistant Emergency Telephone Pillar, Roadside Phone Protection Pillar
The emergency telephone pillar is designed to meet the needs of client who experience loss through vandalism.
Housed in cold rolled steel box and manufactured to a high standard, these telephones offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times.
MAIN FEATURES
- Outdoor Telephone booth with emergency telephone
- Robust construction, Vandal resistant
- Stable, durable and violence-resistible with a waterproof ratio of IP55-IP65
- Tamper resistant fixings
- Fast-fit terminal connection
- Full Keypad
- Can be programmed remotely by tone phone or locally via keypad
- Non-volatile memory
- Telephone line powered (Analogue)
- External power supply or PoE (SIP-VoIP)
- RJ45 port for SIP phone
- Weatherproof and corrosion resistant handset
- Stainless steel armoured handset cord
- Impact, shock, fall and vibration proof,able to perform in difficult environments
- Multipurpose Design for Surface or Post mounting, Simple Installation
(Mounting Brackets for mounting on structure)
- It adopts high strength stainless steel shell and hexagon socket screw
- With tamper-resistant, Conformal-coated PCBA
- Inductive Coupler Fitted as Standard for Hard of Hearing
- CE, FCC, RoHS, ISO9001 compliant
APPLICATIONS
Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.
TECHNICAL PARAMETERS
| Analogue Version | |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | - 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle:1.5W -Active:1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Ambient conditions | |
| Protection type | IP 66 as per EN60529 |
| Operating temperature | -40°C to +70°C |
| Storage temperature | -45°C to +85°C |
More Optional Models
Package Information
Help Point Unit Size: 334 *204 *109 (mm)
Pillar Size: 1600(H) *500(W) (mm)
Packaging materials: pearl cotton, wooden box
Net weight: 30 KG
Gross weight: 45 KG
