Vandal Resistant Industrial Voip Phone Corrosion Resistant Cast Multi Color

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001:2015
Model Number: JR105-FK
Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 3-7 working days
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Detail Information
Material: Aluminum Alloy Color: Yellow, Red, Orange (or Optional)
LCD Display: Yes Weather Resistant: IP66
Version: Analogue, SIP, GSM/3G Size: 334 *204 *143 (mm)
Net Weight: 6 KG Warranty: 2 Years
Anti-vandal: Yes Installation: Wall/ Pillar Mounting
High Light:

weather resistant telephone

,

weatherproof telephone box


Product Description

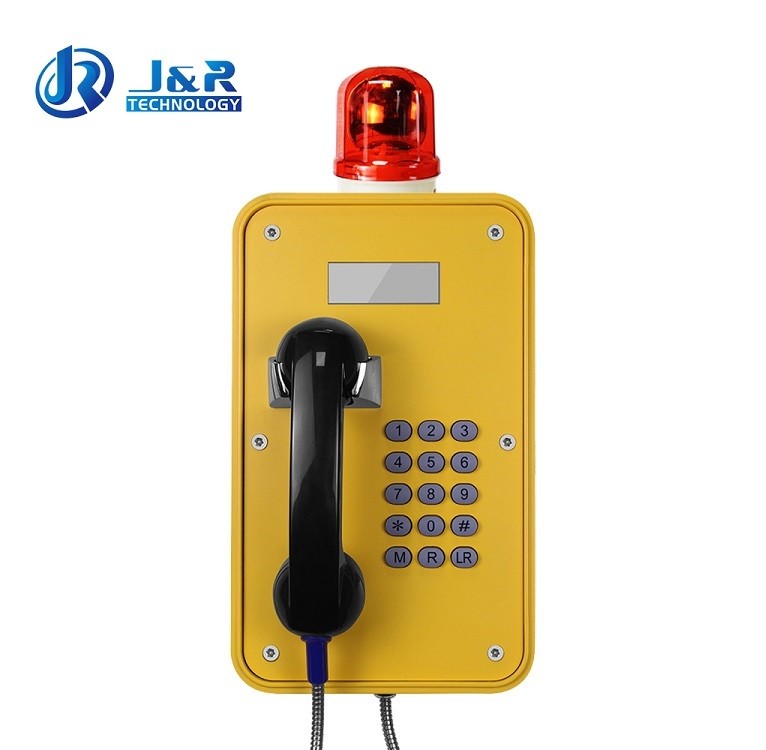

Vandal Resistant Weatherproof Industrial Telephone with LCD Display and Flashing Lamp


This heavy duty hotline telephone is fully contained within a corrosion resistant cast aluminium weatherproof case, which providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.



With LED light on the top, it will flashing when there is an incoming call.


Equipped with horn and beacon, the horn can broadcast remotely for notification, horn works after 1-9 rings (adjustable), shut when handset lifted or call finished. Horn works after 1-9 rings, shut when handset lifted or call finished. The LED Red beacon begins to flash when ringing or in use, attracting attention to the phone when call comes, it could be very useful in the noisy environments.




 Applications

This weatherproof Loud Speaker Mining Telephone With Beacon is very popular for Tunnels, Mining, Marine, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants and related heavy duty industrial application, etc.




Main Features:

- Standard Analog phone, or SIP/VoIP phone
- Aluminum alloy die-casting body

- With LED light on the top, it will flashing when there is incoming call


- Vandal resistant handset and armored cord
- Weather proof protection to IP66
- Full keypad with memory, 0-9 buttons can be programmed as speed dial button.
“LR” button for last number redial
“R” for flash recall
“M” for muting


- Wall/ Pillar mounting, Easy for installation
- Inductive coupler fitted as standard for hard of hearing

- CE, FCC, IOS9001, RoHS compliant



- Phone line powered (Analog)
- External power supply or PoE (SIP-VoIP)
- RJ45 port for SIP phone


Technical Parameters



SIP Version
Power Supply PoE or 12V DC
Power Consumption -Idle:1.5W
-Active:1.8W
SIP Protocol SIP 2.0 (RFC3261)
Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type Full duplex
Ringer volume - 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)



Analogue Version
Power Supply   From the analogue telephone network
Supply Voltage   24 VDC to 65 VDC
Supply Current   20 mA DC to 100 mA DC
Ringer Volume   - 80dB(A) at a distance of 1 m
  - 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method   DTMF mode in accordance with ITU-T recommendation Q.23.



Ambient conditions
Protection type   IP 66 as per EN60529
Operating temperature   -40°C to +70°C
Storage temperature   -45°C to +85°C



Package

Unit Size:    334 *204 *143 mm (H *W * D)
Carton Dimension:   200 * 300 *440 mm (H * W * D)
Packaging materials:   pearl cotton, carton
Net Weight:    5 KG
Gross weight:    6 KG


Vandal Resistant Industrial Voip Phone Corrosion Resistant Cast Multi Color 0
Vandal Resistant Industrial Voip Phone Corrosion Resistant Cast Multi Color 1
