Heavy Duty IP67 Weather Resistant Telephone / Outdoor Emergency Phone

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, IP67, ISO9001:2015
Model Number: JR101-FK
Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 3-5 working days
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Detail Information
Version: Analog, SIP, GSM/3G Weather Resistant: IP66-IP67
Warranty: 2 Years Material: Aluminum Alloy
Color: Yellow, Blue, Red, Orange (or Optional) Size: 246 *339 *126 (mm)
Net Weight: 7 KG Installation: Wall/ Pillar Mounting
Anti-vandal: Yes Armored Cord: Yes
High Light:

weather resistant telephone

,

weatherproof telephone box


Product Description

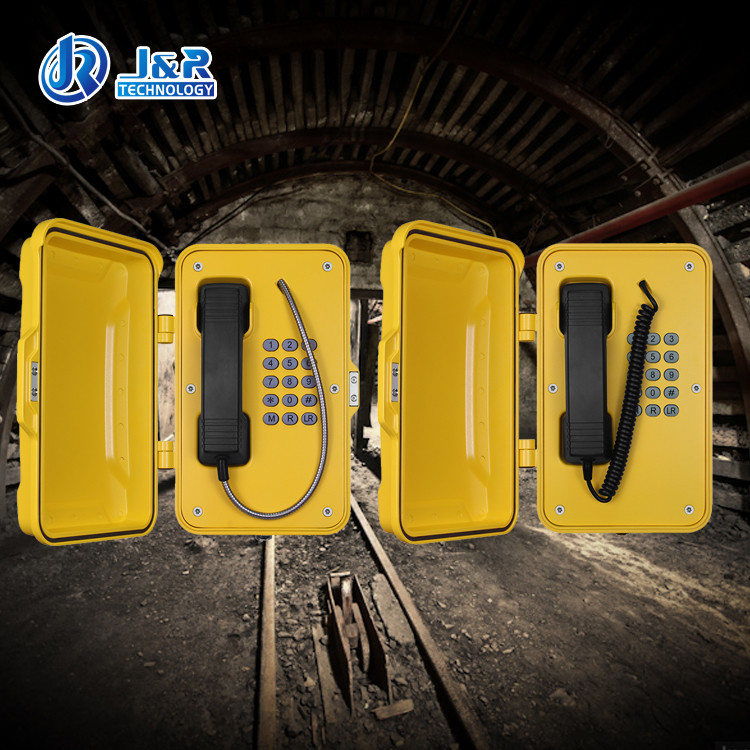

Anti-vandal Weatherproof Telephone with Warning Light for Heavy Duty Industry



This weatherproof telephone is fully contained within a corrosion and vandal resistant cast aluminium weatherproof case with a pivoted door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.




Main Features:
- Available in 3 versoins (Analog, SIP/ VoIP, and GSM/3G)
- Robust housing, constructed of Aluminum alloy
- Vandal resistant handset and armored cord
- Weather proof protection to IP67



- Phone line powered (Analog)
- External power supply or PoE (SIP-VoIP)
- RJ45 port for SIP phone



- Wall/ Pillar mounting, simple installation
- Full keypad with memory, 0-9 buttons can be programmed as speed dial button
   “LR button for last number redial
   “R for flash recall
   “M for muting



- Inductive coupler fitted as standard for hard of hearing
- CE, FCC, ISO9001, RoHS compliant





Application:

This weatherproof telephone has been widely applicate for Tunnels, Mining, Marine, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants and relatedheavy duty industrial application, etc.




Technical Parameters

Analogue Version
Power Supply  From the analogue telephone network
Supply Voltage  24 VDC to 65 VDC
Supply Current  20 mA DC to 100 mA DC
Ringer Volume  - 80dB(A) at a distance of 1 m
 - 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method  DTMF mode in accordance with ITU-T recommendation Q.23.



SIP Version
Power Supply  PoE or 12V DC
Power Consumption  -Idle:1.5W
 -Active:1.8W
SIP Protocol  SIP 2.0 (RFC3261)
Support Codec  G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type  Full duplex
Ringer volume  - 90~95dB(A) at a distance of 1 m
 - 110dB(A) at a distance of 1 m (for external horn speaker)



Ambient conditions
Protection type  IP 66 as per EN60529
Operating temperature  -40°C to +70°C
Storage temperature  -45°C to +85°C



Package
Unit Size: 339*246*126 mm (H *W * D)
Carton Dimension: 200 * 300 *440 mm (H * W * D)
Packaging materials: pearl cotton, carton
Net Weight: 6 KG
Gross weight: 7 KG

Heavy Duty IP67 Weather Resistant Telephone / Outdoor Emergency Phone 0



Heavy Duty IP67 Weather Resistant Telephone / Outdoor Emergency Phone 1

Heavy Duty IP67 Weather Resistant Telephone / Outdoor Emergency Phone 2
