Industrial Telephone Spare Parts Red Rugged Handset with Armored Cord

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS
Model Number: JR-HS-01Red
Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 2-3 working days
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Detail Information
Material: ABS Material Color: Red
Handle Tensile Strength: >180kg Weight: About 0.5 KG
Handset Receiver: M150H (95~97 Db) / 150 Ω Transmitter (microphone): Electret Type SG9767(33-35 Db) / 2.2KΩ
Cord Lengths: 83 Cm (or Customized)
High Light:

outdoor telephone enclosure

,

stainless steel keypad


Product Description

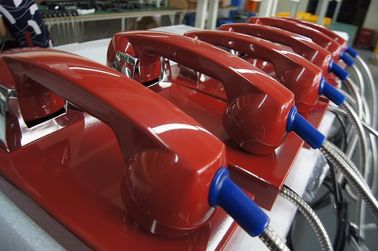

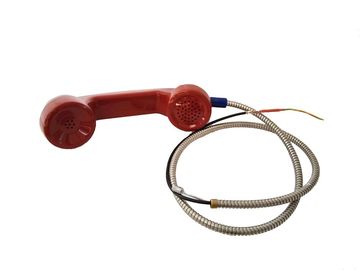

Red Rugged Handset with Armored Cord for Industrial Telephone





Model Number: JR-HS-01Red



FEATURES

- Handset handle and cap material: PC/ABS
- Handset type: Standard Receiver
- Wiring: Four 24 gauge Teflon insulated wires (2 for receiver, 2 for transmitter)
- Armored Cord Assembly.: 304 Stainless Steel


- Includes steel lanyard which is anchored to handset handle. Steel lanyard has a pull test load of approx. 200 kgs
- Available Cord Lengths: 83cm (could be customized)





Handset receiver specification

RECEIVER
Model Number:   R3518M150H
ITEMS   SPECIFICATIONS CONDITIONS
IMPEDANCE   150 ± 20% ohm ( at 1 KHz,60mV input )
SOUND PRESSURE LEVEL

  97 ± 3 dB SPL ( at 1 KHz, 0dBSPL = 20μPa )

  Input 60mVrms, with B&K artificial ear 4153

INPUT POWER (NOM./MAX.)

  0.03W /0.25W

  0.03W / 0.25W

HARMONIC DISTORTION   ≤5% 300<f≤3400Hz
OPERATING TEMPERATURE   -30°C to +70°C

NET WEIGHT

  APPROX. 35.0gram





Handset Microphone specification

Item:   Electret Condenser Microphone
Model Number:   Microphone SG9070
Frequency range   100-8000Hz
Sensitivity   56±2 dB
Output Impedance   Low Impedance
Directivity   Unidirectional
Standard operation voltage   4.5V
Sensitivity reduction   Within -3dB at 1.5V
Current consumption   Max 0.5mA
Operation Temperature   -30℃ to +70℃
Storage Temperature   -40℃ to +85℃
Weight   Less than 1.0g





Drawing

Industrial Telephone Spare Parts Red Rugged Handset with Armored Cord 0
