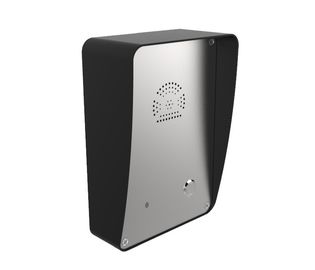

IP65 Wall / Pillar Mounting SIP Call Box For Subway Station / Parking Lots

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001
Model Number: JR305-SC
Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 2-5 working days
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Detail Information
Material: Stainless Steel & Cold Rolled Steel Warranty: 2 Years
Weather Protection: IP65 Button: Stainless Steel
Unit Size: 230 *160 *80 (mm) Weight: 3 KG
Power Supply: PoE
High Light:

outdoor sip phone

,

sip door intercom


Product Description

Vandal-proof Hands-free VoIP Emergency Call Box for Metro / Subway



Housed in cold rolled steel box with stainless steel faceplate and manufactured to a high standard, this handsfree VoIP Emergency Call Box offers increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times.





APPLICATIONS

Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.





MAIN FEATURES

- Standard VOIP/SIP Phone

- Robust housing, constructed of cold rolled steel with stainless steel faceplate

- Vandal resistant metal button

- Hands free operation



- Wall/Pillar mounting, simple installation

- Weather proof protection: up to IP65

- Single or Dual button autodial options with remote programming



- Power supply: Power over Ethernet (PoE)

- Support message function for low battery, door opening & low signal strength.

- CE, FCC, RoHS, ISO9001 compliant





TECHNICAL PARAMETERS

Voice Features

       - Support 2 lines SIP, SIP 2.0 (RFC3261)

- Codec: G.711A/u, G.7231 high/low, G.729, G.722,G.726

- Echo cancellation: Support G.168 and hand-free can support 96ms

- Supports full duplex.

- SIP support SIP domain,SIP authentication(none, basic,MD5),DNS name of server, peer to peer

- SIP support 2 servers, user can through each server to calling in and out



Network Features

- WAN/LAN: support Bridge mode

- Support PPPoE for xDSL

- Support VLAN

- Support Stun penetration

       - Support DHCP get IP on WAN port



Ambient conditions
Protection type  IP 66 as per EN60529
Operating temperature  -40°C to +70°C
Storage temperature  -45°C to +85°C






PACKAGE

Unit size: 230 *160 *80 (mm)

Carton size: 340 *235 *165 ( mm )

Packaging materials: pearl cotton, carton

Gross weight: 3 KG

Net weight: 2 KG
