| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | J&R |
| Certification: | CE, FCC, RoHS, ISO9001 |
| Model Number: | JR202-CB |
| Minimum Order Quantity: | 1 set |
| Price: | Reconsideration |
| Packaging Details: | pearl cotton, carton |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 3000 sets per month |
| Magnetic Hook: | Yes | Material: | Cold Rolled Steel |
|---|---|---|---|
| Dimension: | 240 *100 *106 (mm) | Power Supply: | Telephone Line |
| Communication Type: | Full Duplex | Color: | Red, Yellow, Or Optional |
| Weatherproof: | Yes | Brand: | J&R |
| High Light: | weatherproof analog phone,heavy duty analog phone |
||

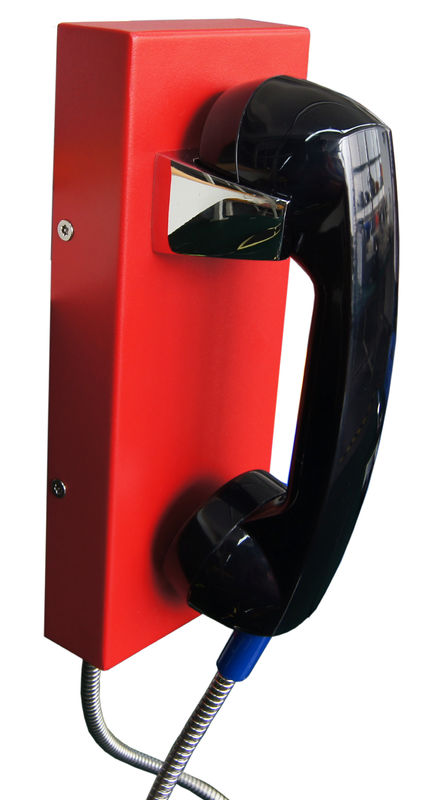

Auto-dial Analog Telephones with Vandal-proof Handset for Industry
This rugged auto-dial telephone with armored cord is housed in robust cold rolled steel box and manufactured to a high standard, it is offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times, resulting in a highly reliable product with a long MTBF.
APPLICATIONS
Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.
MAIN FEATURES
- Standard Analog phone
- Rugged housing, Constructed of cold rolled steel
- Vandal-proof handset with armored cord
- Auto-dial via handset
- Programmable for auto-dial
- Phone line powered
- Weather proof protection up to IP55-IP65
- Non-volatile memory
- Wall mounting, easy installation
- Inductive coupler fitted as standard for hard of hearing
- CE, FCC, RoHS, ISO9001 compliance
Technical Specifications
| Analogue Version | |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | - 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| Ambient conditions | |
| Protection type | IP 66 as per EN60529 |
| Operating temperature | -40°C to +70°C |
| Storage temperature | -45°C to +85°C |
PACKAGE
unit size: 240 *100 *106 (mm)
Carton size: 340 *235 *165 (mm)
Packaging materials: pearl cotton, carton
Net weight: 2 KG
Gross weight: 3 KG
