Stainless Steel Waterproof Industrial Analog Telephone With LCD Display

Good quality Industrial VoIP Phone for sales
Good quality Industrial VoIP Phone for sales
I'm Online Chat Now

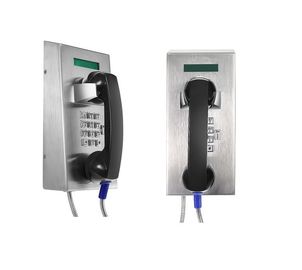

Stainless Steel Waterproof Industrial Analog Telephone With LCD Display

China Stainless Steel Waterproof Industrial Analog Telephone With LCD Display supplier
Stainless Steel Waterproof Industrial Analog Telephone With LCD Display supplier Stainless Steel Waterproof Industrial Analog Telephone With LCD Display supplier Stainless Steel Waterproof Industrial Analog Telephone With LCD Display supplier

Large Image :  Stainless Steel Waterproof Industrial Analog Telephone With LCD Display

Product Details:

Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001
Model Number: JR212-FK

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 2-5 working days
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Contact Now
Detailed Product Description
Material: Stainless Steel Warranty: 2 Years
Weather Protection: IP55-IP65 Handset: ABS Material With Armored Cord
Volume Control Button: Yes LCD Display: Yes
G.W: 4 KG Dimension: 247 *130 *132 (mm)
Application: Prison And Other Public Area MOQ: 1 Set

Rugged Waterproof Tunnel Telephone with LCD display, Impact resistant Industrial Telephone



This Rugged Prison SIP Telephone is designed to meet the needs of client who experience loss through vandalism.



Housed in stainless steel box and manufactured to a high standard, these telephones offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times.





APPLICATIONS

Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.





MAIN FEATURES

- Standard Analogue phone, or SIP phone

- Robust housing, constructed of stainless steel, with LCD display

- Weather proof protection IP65

Vandal resistant armored cord handset



Full Rugged & durable keypad with volume control feature button

- Can be programmed remotely by tone phone or locally via keypad

- Non-volatile memory

- RJ45 Ethernet socket through IP67 plug connector.
- With direct connection to LAN or WAN via RJ45 connector



- Phone lone powered (Analog)

- External Power supply or PoE (SIP phone)

RJ45 port for SIP phone

- Inductive coupler fitted as standard for hard of hearing


- Can be configured by web browser,Static IP address provisioning or DHCP.
- Mass configuration available.
- This phone can be easily flush mounted without the need for a separate mounting device.

- CE, FCC, RoHS, ISO9001 compliant





TECHNICAL PARAMETERS

Analogue Version
Power Supply From the analogue telephone network
Supply Voltage 24 VDC to 65 VDC
Supply Current 20 mA DC to 100 mA DC
Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.
SIP Version
Power Supply PoE or 12V DC
Power Consumption -Idle: 1.5W
-Active: 1.8W
SIP Protocol SIP 2.0 (RFC3261)
Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type Full duplex
Ringer volume - 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)



Ambient conditions
Protection type IP 66 as per EN60529
Operating temperature -40°C to +70°C
Storage temperature -45°C to +85°C





PACKAGE

Unit size: 283 *136 *132 (mm)

Carton size: 340 *235 *165 (mm)

Packaging materials: pearl cotton, carton

Net weight: 3.5 KG

Gross weight: 4 KG



Stainless Steel Waterproof Industrial Analog Telephone With LCD Display

Stainless Steel Waterproof Industrial Analog Telephone With LCD Display
