Orange Watertight Explosion Proof Telephone For Oil Exploration / Chemical Industry

Good quality Industrial VoIP Phone for sales
Good quality Industrial VoIP Phone for sales
I'm Online Chat Now

Orange Watertight Explosion Proof Telephone For Oil Exploration / Chemical Industry

China Orange Watertight Explosion Proof Telephone For Oil Exploration / Chemical Industry supplier
Orange Watertight Explosion Proof Telephone For Oil Exploration / Chemical Industry supplier Orange Watertight Explosion Proof Telephone For Oil Exploration / Chemical Industry supplier

Large Image :  Orange Watertight Explosion Proof Telephone For Oil Exploration / Chemical Industry

Product Details:

Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: ATEX, CE, FCC, RoHS, IP67, ISO9001
Model Number: JREX101-CB-HB

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T
Supply Ability: 1000 sets per month
Contact Now
Detailed Product Description
Color: Orange, Others Optional Material: Aluminium Alloy
Weather Resistant: IP67 Version: Analog, VoIP
Warranty: 2 Years Weight: 8 KG
Unit Size: 246*339*126 (mm) Installation: Wall / Pillar Mounting

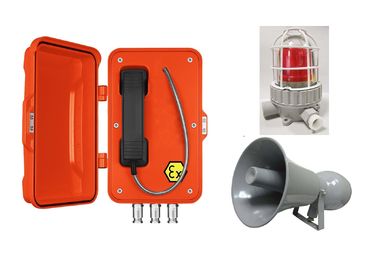

Lamp&Horn: External Power Supplied

Orange Watertight Explosion Proof Telephone For Oil Exploration / Chemical Industry





APPLICATIONS
1. Suitable for explosive gas atmospheres Zone 1, 2, 22.
2. Suitable for temperature class T1 ~ T6.
3. Widely used in oil exploration, chemical, military, pharmaceutical, oil refining and other hazardous environments and depots, offshore oil platform, oil tankers and other related industrial application, etc.




This product has the following explosion protection:
II 2G Rx e ib [ib] mb IIC T6 Gb
III 2D Ex ib [ib] tb IIIC T135 °
-40 °C ≤ Ta ≤ +60 °C/+40°C
Zone 1, Zone 2, Zone 22




MAIN FEATURES
- Corrosion resistant aluminum alloy die casting housing

- IP67 environmental ratings
- Certificated for use in Hazardous areas of Gas Group IIB/IIA


- Ex ’d’ protected
- Temperature classification:T4

- Programmable for auto-dial

Power supply: Phone line powered (Analog)

                          PoE for SIP


- SIP or H323 protocols (Compatible with all PBX’S)

- Programmable for auto-dial
- Fully configurable through any internet browser or the on-board display
- Handset with Noise canceling microphone,for effective communication from noisy areas

  (Armored SS cord stands up to rough treatment,optional for black curly cord )



- The phone will ringing loudly and the lamp will flashing when there is a incoming call

- With auto-answer feature after 5 ringings, Auto-release the line when the other side cut off the line

- With built-in amplifier, with external ringer and lamp: 15W (30W optional)



- Hermetically sealed non-contact hook sensing switch improves system reliability
- Mounting: Wall/column/structural
- Captive cover screws prevent loss during installation



TECHNICAL SPECIFICATION

SIP Version
Power Supply   PoE or 12V DC
Power Consumption   -Idle:1.5W
  -Active:1.8W
SIP Protocol   SIP 2.0 (RFC3261)
Support Codec   G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type   Full duplex
Ringer volume   - 90~95dB(A) at a distance of 1 m
  - 110dB(A) at a distance of 1 m (for external horn speaker)



Analogue Version
Power Supply   From the analogue telephone network
Supply Voltage   24 VDC to 65 VDC
Supply Current   20 mA DC to 100 mA DC
Ringer Volume   - 80dB(A) at a distance of 1 m
  - 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method   DTMF mode in accordance with ITU-T recommendation Q.23.



Ambient conditions
Protection type   IP 66 as per EN60529
Operating temperature   -40°C to +70°C
Storage temperature   -45°C to +85°C





PACKAGE
Unit Size: 246*339*126mm (H*W*D)
Carton Dimension: 200 * 300 *440 mm (H * W * D)
Packaging materials: pearl cotton, carton
Net Weight: 7 KG
Gross weight: 8 KG
Orange Watertight Explosion Proof Telephone For Oil Exploration / Chemical Industry

Orange Watertight Explosion Proof Telephone For Oil Exploration / Chemical Industry
