Impact Resistant Safety Explosion Proof IP Phone Anti Dust With Lamp And Horn

Good quality Industrial VoIP Phone for sales
Good quality Industrial VoIP Phone for sales
I'm Online Chat Now

Impact Resistant Safety Explosion Proof IP Phone Anti Dust With Lamp And Horn

China Impact Resistant Safety Explosion Proof IP Phone Anti Dust With Lamp And Horn supplier
Impact Resistant Safety Explosion Proof IP Phone Anti Dust With Lamp And Horn supplier Impact Resistant Safety Explosion Proof IP Phone Anti Dust With Lamp And Horn supplier

Large Image :  Impact Resistant Safety Explosion Proof IP Phone Anti Dust With Lamp And Horn

Product Details:

Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: ATEX, CE, FCC, RoHS, IP67, ISO9001
Model Number: JREX101-HB

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T
Supply Ability: 1000 sets per month
Contact Now
Detailed Product Description
Material: Aluminium Alloy Color: Orange (or Optional)
Weather Resistant: IP67 Version: Analog, SIP
Warranty: 2 Years Weight (phone): 8 KG
Installation: Wall/Pillar Mounting Unit Size: 246*339*126 (mm)

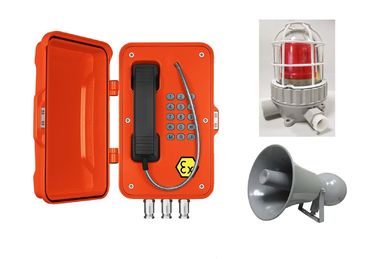

Impact Resistant Industrial Explosion-proof Telephone with Ex-proof Lamp and Horn

This Explosion-proof Industrial Telephone is designed for voice communication in the hostile environment where reliability, efficiency and safety are of prime importance.


The telephone can handle the large temperature differences found outdoors, high humidity, exposure to sea water and dust, Corrosive atmosphere, Explosive gases & particles, as well as mechanical wear and tear, making it perfect for use as an emergency telephone.



 APPLICATIONS
1. Suitable for explosive gas atmospheres Zone 1, 2, 22.
2. Suitable for temperature class T1 ~ T6.
3. Widely used in oil exploration, chemical, military, pharmaceutical, oil refining and other hazardous environments and depots, offshore oil platform, oil tankers and other related industrial application, etc.




MAIN FEATURES
- Corrosion resistant aluminum alloy die casting housing, available in four colors

- With NPT conduit entries and Type 3 / IP67 environmental ratings
- Certificated for use in Hazardous areas of Gas Group IIB/IIA
- Zone classification: Zone 1, Zone 2 and Zone 22


- Ex ’d’ protected
- Intrinsically safe Ex”ib” certified
- Temperature classification:T4

- SIP or H323 protocols (Compatible with all PBX’S)
- Power supply: Phone line powered (Analog)

                          Power over Ethernet (SIP)


- Fully configurable through any internet browser or the on-board display
- Handset with Noise canceling microphone,for effective communication from noisy areas
  (Armored SS cord stands up to rough treatment,optional for black curly cord )

- Completely programmable weatherproof keypad designed to be used with gloves


- No.of keys (TOTAL 15KEYS): 0-9,*, #, Redial, Mute, Last Number Redial



- The phone will ringing loudly and the lamp will flashing when there is a incoming call

- With auto-answer feature after 5 ringings, Auto-release the line when the other side cut off the line

- With built-in amplifier, with external ringer and lamp: 15W (30W optional)


- Hermetically sealed non-contact hook sensing switch improves system reliability
- Built-in External Ringer that provides penetrating calling signal (85dbA@ 1meter)
- Mounting: Wall/column/structural
- Captive cover screws prevent loss during installation

This product has the following explosion protection:
II 2G Rx e ib [ib] mb IIC T4 Gb
III 2D Ex ib [ib] tb IIIC T135 °
-40 °C ≤ Ta ≤ +60 °C/+40°C
Zone 1, 2, 22




TECHNICAL SPECIFICATION

Analogue Version
Power Supply   From the analogue telephone network
Supply Voltage   24 VDC to 65 VDC
Supply Current   20 mA DC to 100 mA DC
Ringer Volume   - 80dB(A) at a distance of 1 m
  - 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method   DTMF mode in accordance with ITU-T recommendation Q.23.



SIP Version
Power Supply   PoE or 12V DC
Power Consumption   -Idle:1.5W
  -Active:1.8W
SIP Protocol   SIP 2.0 (RFC3261)
Support Codec   G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type   Full duplex
Ringer volume   - 90~95dB(A) at a distance of 1 m
  - 110dB(A) at a distance of 1 m (for external horn speaker)



Ambient conditions
Protection type   IP 66 as per EN60529
Operating temperature   -40°C to +70°C
Storage temperature   -45°C to +85°C



PACKAGE
Unit Size: 246*339*126 mm (H*W*D)
Carton Dimension: 200 * 300 *440 mm (H * W * D)
Packaging materials: pearl cotton, carton
Net Weight: 7 KG
Gross weight: 8 KG
Impact Resistant Safety Explosion Proof IP Phone Anti Dust With Lamp And Horn
