| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | J&R |
| Certification: | ATEX, CE, FCC, RoHS, IP67, ISO9001 |
| Model Number: | JREX103 |
| Minimum Order Quantity: | 1 set |
| Price: | Reconsideration |
| Packaging Details: | pearl cotton, carton |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 sets per month |
| Material: | Aluminium Alloy | Power Supply: | PoE (Power Over Ethernet) |
|---|---|---|---|
| Weather Resistant: | IP67 | Color: | Orange, Others Optional |
| Warranty: | 2 Years | Weight: | 7 KG |
| Installation: | Wall/Pillar Mounting | Unit Size: | 204*334*109 (mm) |
| Vandal Resistant: | Yes | ||
| High Light: | ex proof telephone,explosion proof ip phone,Aluminium Alloy Hazardous Area Telephone |
||

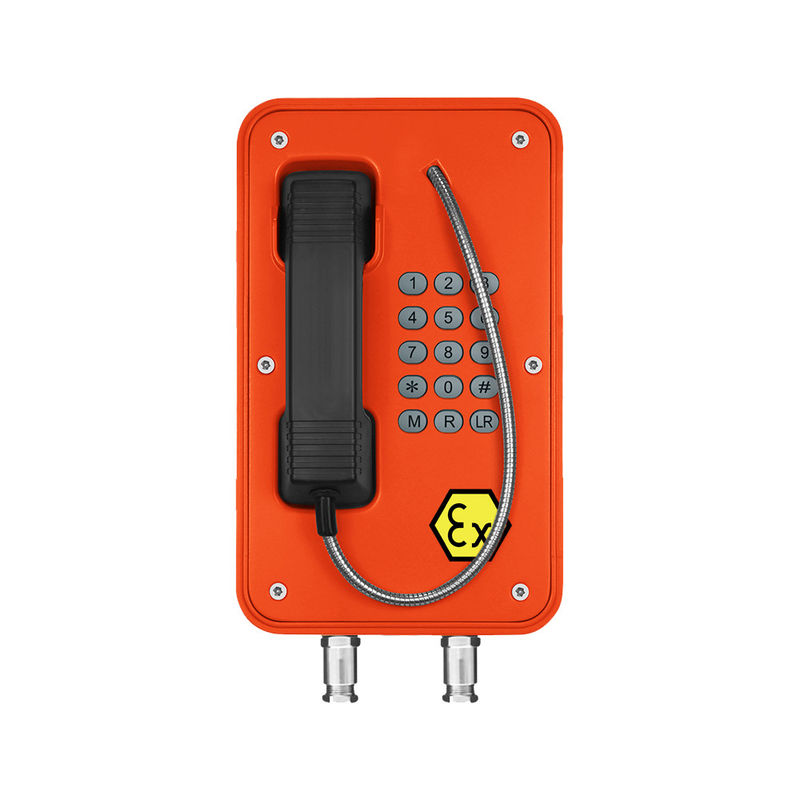

Impact Resistant SIP Industrial Explosion-proof Telephone for Hazardous areas of Gas Group IIB/IIA
This VoIP Explosion-proof Industrial Telephone is designed for voice communication in the hostile environment where reliability, efficiency and safety are of prime importance.
This Ex-proof Emergency telephone can handle the large temperature differences found outdoors, high humidity, exposure to sea water and dust, Corrosive atmosphere, Explosive gases & particles, as well as mechanical wear and tear.
APPLICATIONS
1. Suitable for explosive gas atmospheres Zone 1, 2, 22.
2. Suitable for temperature class T1 ~ T6.
3. Widely used in oil exploration, chemical, military, pharmaceutical, oil refining and other hazardous environments and depots, offshore oil platform, oil tankers and other related industrial application, etc.
MAIN FEATURES
- Corrosion resistant aluminum alloy die casting housing
- Weather proof protection to IP67
- Certificated for use in Hazardous areas of Gas Group IIB/IIA
- Zone classification: Zone 1, Zone 2 and Zone 22
- Ex ’d’ protected
- Intrinsically safe Ex”ib” certified
- Temperature classification:T4
- SIP or H323 protocols (Compatible with all PBX’S)
- Power supply: Power over Ethernet (PoE)
- Fully configurable through any internet browser or the on-board display
- Handset with Noise canceling microphone,for effective communication from noisy areas
(Armored SS cord stands up to rough treatment,optional for black curly cord )
- Full keypad with memory, 0-9 buttons can be programmed as speed dial button.
“LR” button for last number redial
“R” for flash recall
“M” for muting
- Hermetically sealed non-contact hook sensing switch improves system reliability
- Mounting: Wall/column/structural
- Captive cover screws prevent loss during installation
This product has the following explosion protection:
II 2G Rx e ib [ib] mb IIC T4 Gb
III 2D Ex ib [ib] tb IIIC T135 °
-40 °C ≤ Ta ≤ +60 °C/+40°C
Zone 1, 2, 22
TECHNICAL SPECIFICATION
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle:1.5W -Active:1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Ambient conditions | |
| Protection type | IP 66 as per EN60529 |
| Operating temperature | -40°C to +70°C |
| Storage temperature | -45°C to +85°C |
PACKAGE
Unit Size: 204*334*109 (H*W*D)
Carton Dimension: 200 * 300 *440 mm (H * W * D)
Packaging materials: pearl cotton, carton
Net Weight: 7 KG
Gross weight: 8 KG
