IP65 Vandal Resistant Telephone Stainless Steel Robust Housing For Tunnel Control Room

Good quality Industrial VoIP Phone for sales
Good quality Industrial VoIP Phone for sales
I'm Online Chat Now

IP65 Vandal Resistant Telephone Stainless Steel Robust Housing For Tunnel Control Room

China IP65 Vandal Resistant Telephone Stainless Steel Robust Housing For Tunnel Control Room supplier
IP65 Vandal Resistant Telephone Stainless Steel Robust Housing For Tunnel Control Room supplier IP65 Vandal Resistant Telephone Stainless Steel Robust Housing For Tunnel Control Room supplier IP65 Vandal Resistant Telephone Stainless Steel Robust Housing For Tunnel Control Room supplier

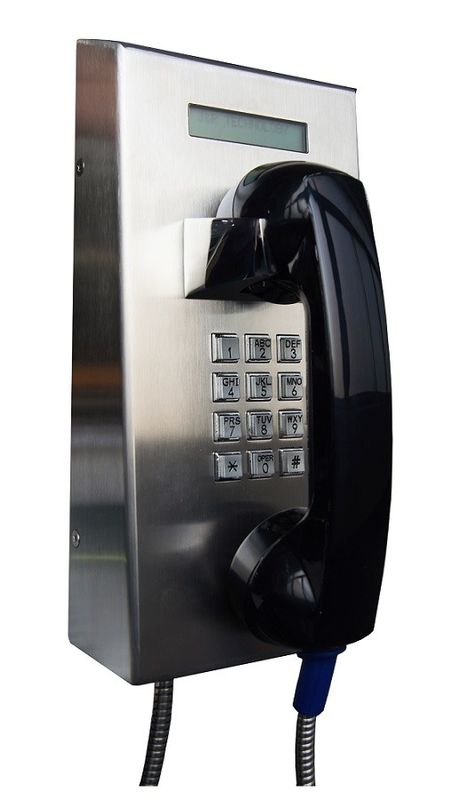

Large Image :  IP65 Vandal Resistant Telephone Stainless Steel Robust Housing For Tunnel Control Room

Product Details:

Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001
Model Number: JR212-FK

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 2-5 working days
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Contact Now
Detailed Product Description
Material: Cold Rolled Steel Color: Grey
Warranty: 2 Years Weather Protection: IP65
Handset: ABS Material With Armored Cord Keypad: Full Rugged & Durable Keypad
Voice Control Button: Yes Vandal Resistant: Yes
With Display: Yes Weight: 4 KG

Anti-vandal Telephone with Rugged and Handset Housing for Tunnel Control Room



This Vandal Resistant Telephone with Voice Control Button is housed in robust steel box and manufactured to a high standard, it is offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times, resulting in a highly reliable product with a long MTBF.





APPLICATIONS

Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.





MAIN FEATURES

- Standard Analogue phone, or SIP phone

- Robust housing, constructed of stainless steel

Vandal resistant armored cord handset

- Weather proof protection IP65



- With LCD display

- Full Rugged & durable keypad with volume control feature button

- Can be programmed remotely by tone phone or locally via keypad

- Non-volatile memory



- Phone lone powered (Analog)

- External Power supply or PoE (SIP phone)

- RJ45 port for SIP phone



- Inductive coupler fitted as standard for hard of hearing

- Wall mounting, simple installation

- CE, FCC, RoHS, ISO9001 compliant





TECHNICAL PARAMETERS

Analogue Version
Power Supply From the analogue telephone network
Supply Voltage 24 VDC to 65 VDC
Supply Current 20 mA DC to 100 mA DC
Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.



SIP Version
Power Supply  PoE or 12V DC
Power Consumption  -Idle: 1.5W
 -Active: 1.8W
SIP Protocol  SIP 2.0 (RFC3261)
Support Codec  G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type  Full duplex
Ringer volume  - 90~95dB(A) at a distance of 1 m
 - 110dB(A) at a distance of 1 m (for external horn speaker)



Ambient conditions
Protection type  IP 66 as per EN60529
Operating temperature  -40°C to +70°C
Storage temperature  -45°C to +85°C





PACKAGE

Unit size: 247 *130 *132 (mm)

Carton size: 340 *235 *165 (mm)

Packaging materials: pearl cotton, carton

Net weight: 3  KG

Gross weight: 4 KG

IP65 Vandal Resistant Telephone Stainless Steel Robust Housing For Tunnel Control Room

IP65 Vandal Resistant Telephone Stainless Steel Robust Housing For Tunnel Control Room
