| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | J&R |
| Certification: | CE, FCC, RoHS, IP67, ISO9001:2015 |
| Model Number: | JR101-FK |
| Minimum Order Quantity: | 1 set |
| Price: | Reconsideration |
| Packaging Details: | pearl cotton, carton |
| Delivery Time: | 3-7 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 3000 sets per month |
| Material: | Aluminum Alloy | Weather Resistant: | IP67 |
|---|---|---|---|
| Power Supply: | PoE, Or External Power Supply | Installation: | Wall/ Pillar Mounting |
| Color: | Yellow, Blue, Red, Orange (or Optional) | Size: | 246 *339 *126 (mm) |
| Net Weight: | 7 KG | Warranty: | 2 Years |
| Anti-vandal: | Yes | ||
| High Light: | rugged voip phone,voice over ip phone,Voice Over IP Phone Pillar Mounting |
||

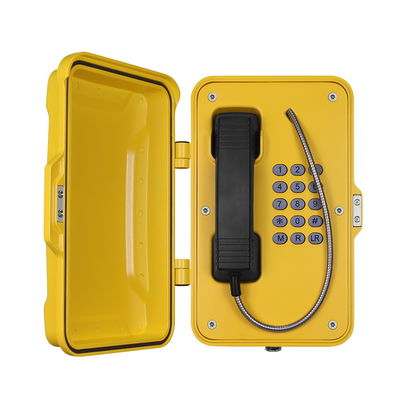

Moisture Resistant VoIP Telephone for Heavy Duty Industry, Corrosion-resistant Industrial SIP Phone
Main Features:
- Standard SIP/ VoIP phone
- Aluminum alloy die-casting body
- Vandal resistant handset and armored cord
- Weather proof protection to IP67
- Full keypad with memory, 0-9 buttons can be programmed as speed dial button.
“LR” button for last number redial
“R” for flash recall
“M” for muting
- Wall/ Pillar mounting, simple installation
- External power supply or PoE (SIP-VoIP)
- RJ45 port for SIP phone
- Compatible with standard SIP protocol, independently accessible to VOIP phone system.
(Asterisk, Elastix,Grandstream,Cisco,Yeastar etc. mainstream IP-PBX);
- Inductive coupler fitted as standard for hard of hearing
- CE, FCC, ISO9001, RoHS compliant
Applications
This weatherproof telephone is very popular for Tunnels, Mining, Marine, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants and relatedheavy duty industrial application, etc.
Optional
- Add Horn & Lamp on the top
- Key lockable latch
- Upper & lower internal mounting plates
- Flat label area or custom embossed logo on door
- Vandal resistant screws for upper mounting plate
Technical Parameters
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle: 1.5W -Active: 1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Ambient conditions | |
| Protection type | IP 66 as per EN60529 |
| Operating temperature | -40°C to +70°C |
| Storage temperature | -45°C to +85°C |
Voice Features
- Support 2 lines SIP, SIP 2.0 (RFC3261)
- Codec: G.711A/u, G.7231 high/low, G.729, G.722,G.726
- Echo cancellation: Support G.168 and hand-free can support 96ms
- Supports full duplex.
- SIP support SIP domain,SIP authentication(none, basic,MD5),DNS name of server, peer to peer
- SIP support 2 servers, user can through each server to calling in and out
Network Features
- WAN/LAN: support Bridge mode
- Support PPPoE for xDSL
- Support VLAN
- Support Stun penetration
- Support DHCP get IP on WAN port
Package
Unit Size: 339*246*126 mm (H *W * D)
Carton Dimension: 200 * 300 *440 mm (H * W * D)
Packaging materials: pearl cotton, carton
Net Weight: 6 KG
Gross weight: 7 KG
