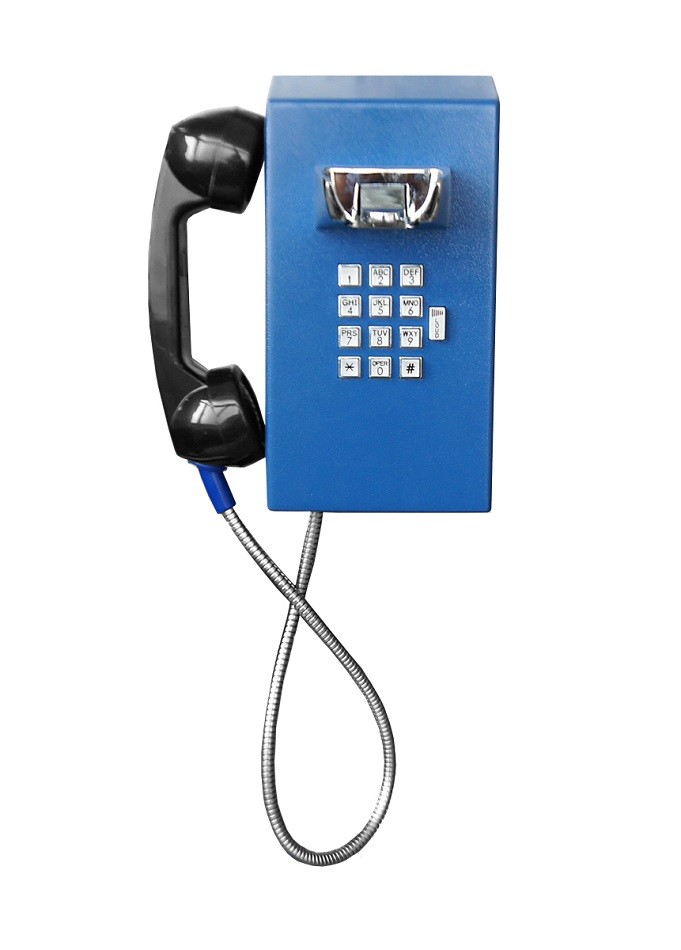

Rugged Inmate Phone / Prison Visitation Phone With Volume Control Button

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001
Model Number: JR201-FK-VC
Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 2-5 working days
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Detail Information
Material: Cold Rolled Steel Color: Bule, Or Optional
Warranty: 2 Years Weather Protection: IP65
Handset: ABS Material With Armored Cord Keypad: Full Rugged & Durable Keypad
Voice Control Button: Yes Vandal Resistant: Yes
High Light:

inmate phone

,

prison visitation phone

,

Rugged Prison Visitation Phone


Product Description

Rugged Inmate Phones with Voice Control Button, Anti-vandal Visitation Telephone



Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.



MAIN FEATURES

- Standard Analogue phone, or VoIP/SIP Phone

- Robust housing, constructed of cold rolled steel with powder coat

- Vandal resistant handset and armored cord



- Weather proof protection: IP55-IP65

- Full rugged & durable keypad with volume control feature

- With memory, easy to operate. 0-9 buttons can also be programmed as speed dial button.



- Wall mounting, simple installation

- Inductive coupler fitted as standard for hard of hearing

- CE, FCC, RoHS, ISO9001 compliant



- Phone line powered (Analog version)

- External Power supply or PoE (SIP phone)

- RJ45 port for SIP phone

- Compatible with standard SIP protocol, independently accessible to VOIP phone system.

   (Asterisk, Elastix,Grandstream,Cisco,Yeastar etc. mainstream IP-PBX)





TECHNICAL PARAMETERS



Analogue Version
Power Supply From the analogue telephone network
Supply Voltage 24 VDC to 65 VDC
Supply Current 20 mA DC to 100 mA DC
Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.



SIP Version
Power Supply PoE or 12V DC
Power Consumption -Idle: 1.5W
-Active: 1.8W
SIP Protocol SIP 2.0 (RFC3261)
Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type Full duplex
Ringer volume - 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)



Ambient conditions
Protection type IP 66 as per EN60529
Operating temperature -40°C to +70°C
Storage temperature -45°C to +85°C







PACKAGE

unit size: 247 *130 *132 (mm)

Carton size: 340 *235 *165 (mm)

Packaging materials: pearl cotton, carton

Net weight: 3 KG

Gross weight: 4 KG
