Rugged Industrial Explosion Proof Telephone For Hazardous Areas / Power Station

Good quality Industrial VoIP Phone for sales
Good quality Industrial VoIP Phone for sales
I'm Online Chat Now

Rugged Industrial Explosion Proof Telephone For Hazardous Areas / Power Station

China Rugged Industrial Explosion Proof Telephone For Hazardous Areas / Power Station supplier
Rugged Industrial Explosion Proof Telephone For Hazardous Areas / Power Station supplier Rugged Industrial Explosion Proof Telephone For Hazardous Areas / Power Station supplier

Large Image :  Rugged Industrial Explosion Proof Telephone For Hazardous Areas / Power Station

Product Details:

Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: ATEX, CE, FCC, RoHS, IP67, ISO9001
Model Number: JREX101

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T
Supply Ability: 1000 sets per month
Contact Now
Detailed Product Description
Material: Aluminium Alloy Color: Orange, Others Optional
Warranty: 2 Years Power Supply: PoE (Power Over Ethernet)
Weather Resistant: IP67 Weight: 8 KG
Installation: Wall Mounting Unit Size: 246*339*126 (mm)
Vandal Resistant: Yes

Rugged Industrial Explosion Proof Telephone For Hazardous Areas / Power Station


This JREX101 VoIP Explosion-proof Industrial Telephone is fully contained within a corrosion resistant cast aluminium weatherproof case which providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.

This VoIP Explosion-proof Industrial Telephone is designed for voice communication in the hostile environment where reliability, efficiency and safety are of prime importance. The telephone can handle the large temperature differences found outdoors, high humidity, exposure to sea water and dust, Corrosive atmosphere, Explosive gases & particles, as well as mechanical wear and tear, making it perfect for use as an emergency telephone.


MAIN FEATURES
- Corrosion resistant aluminum alloy die casting housing, available in four colors, with NPT conduit entries and Type 3 / IP67 environmental ratings
- Certificated for use in Hazardous areas of Gas Group IIB/IIA
- Zone classification: Zone 1, Zone 2 and Zone 22
- Ex ’d’ protected
- Intrinsically safe Ex”ib” certified
- Temperature classification:T6

- SIP or H323 protocols (Compatible with all PBX’S)
- Power supply: Power over Ethernet (PoE)
- Fully configurable through any internet browser or the on-board display
- Handset with Noise canceling microphone,for effective communication from noisy areas

  (Armored SS cord stands up to rough treatment,optional for black curly cord )
- Completely programmable weatherproof keypad designed to be used with gloves
- No.of keys (TOTAL 15KEYS): 0-9,*, #, Redial, Mute, Last Number Redial
- Hermetically sealed non-contact hook sensing switch improves system reliability
- Built-in External Ringer that provides penetrating calling signal (85dbA@ 1meter)
- Mounting: Wall/column/structural
- Captive cover screws prevent loss during installation

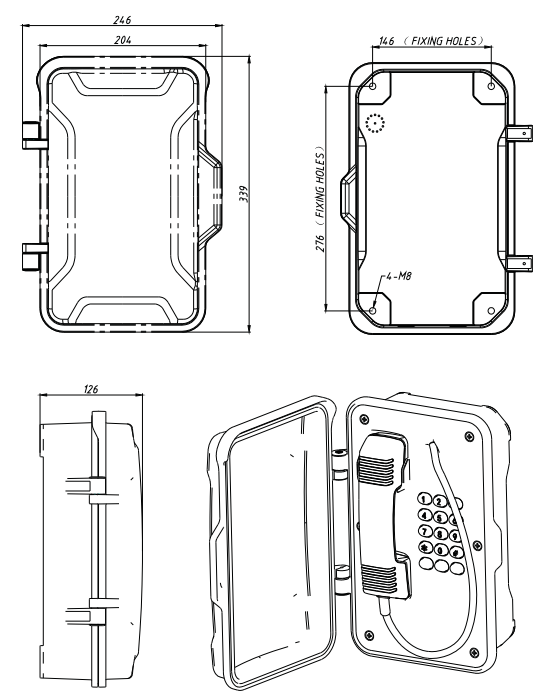

- Dimension: Approx. 246*339*126mm (H*W*D)
- Weight: 8Kg. (Approx)


Rugged Industrial Explosion Proof Telephone For Hazardous Areas / Power Station
This product has the following explosion protection:
II 2G Rx e ib [ib] mb IIC T6 Gb
III 2D Ex ib [ib] tb IIIC T135 °
-40 °C ≤ Ta ≤ +60 °C/+40°C
Zone 1, 2, 22



APPLICATIONS
1. Suitable for explosive gas atmospheres Zone 1, 2, 22.
2. Suitable for temperature class T1 ~ T6.
3. Widely used in oil exploration, chemical, military, pharmaceutical, oil refining and other hazardous environments and depots, offshore oil platform, oil tankers and other related industrial application, etc.



TECHNICAL SPECIFICATION


SIP Version
Power SupplyPoE or 12V DC
Power Consumption-Idle:1.5W
-Active:1.8W
SIP ProtocolSIP 2.0 (RFC3261)
Support CodecG.711 A/U, G.722 8000/16000, G.723, G.729
Communication TypeFull duplex
Ringer volume- 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
Ambient conditions
Protection typeIP 66 as per EN60529
Operating temperature-40°C to +70°C
Storage temperature-45°C to +85°C

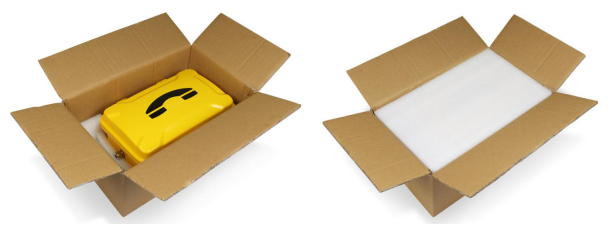

PACKAGE
Unit Size: 246*339*126mm (H*W*D)
Carton Dimension: 200 * 300 *440 mm (H * W * D)
Packaging materials: pearl cotton, carton
Net Weight: 7 KG
Gross weight: 8 KG
Rugged Industrial Explosion Proof Telephone For Hazardous Areas / Power Station
Rugged Industrial Explosion Proof Telephone For Hazardous Areas / Power Station
Rugged Industrial Explosion Proof Telephone For Hazardous Areas / Power Station
